GaN Systems - GS-EVM-3PH-650V300A-SM1

650V 300A 3-Phase GaN Power Module
RFPD
GaN Power Module

GaN Power Module

Mfg Part No: GS-EVM-3PH-650V300A-SM1

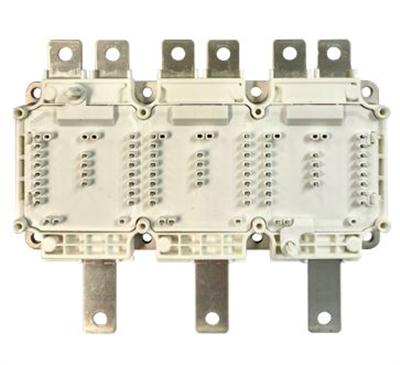

This GS-EVM-3PH-650V300A-SM1 evaluation module is a 650 V 300 A 3-Phase GaN power module designed to meet high robustness, high power density, and low-cost requirements of the automotive and industrial markets.

Order Now

Features

  • Includes 12 GS-065-150-1-D (650V 150A E-mode Die)
  • Industry standard form factor
  • High thermal conductivity base plate
  • Optimized isolated gate driver board available
  • Ultra-low switching losses & Zero QRR
  • Ultra-high dV/dt Ruggedness
  • Adjustable TRISE / TFALL & reverse conduction capability
  • Press-Fit Pins for ease of assembly
  • ZTA substrates for superior reliability
  • Greater than 4 kV DC 1-second electrical Isolation

    • Applications

  • High efficiency 75kW traction inverter drives
  • Motor drives
  • High efficiency high power systems
