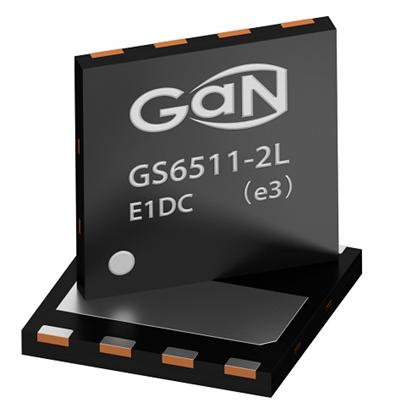

GaN Systems - GS-065-011-2-LX

Reduce the Cost Per Watt in 45W to 150W Applications
In Stock: 8x8mm PDFN Package GaN Transistors

In Stock: 8x8mm PDFN Package GaN Transistors

The GS-065-011-2-L is an enhancement mode GaN-on-Silicon power transistor. The properties of GaN allow for high current, high voltage breakdown and high switching frequency. GaN Systems innovates with industry leading advancements such as patented Island Technology® cell layout which realizes high-current die and high yield. The GS-065-011-2-L is a bottom-side cooled transistor that offers low junction-to-case thermal resistance for demanding high power applications. These features combine to provide very high efficiency power switching.

  • 650 V enhancement mode power transistor
  • Bottom-cooled 8×8 mm PDFN package
  • RDS(on) = 150 mOhm
  • IDS(max) = 11 A
  • Ultra-low FOM
  • Simple gate drive requirements (0 V to 6 V)
  • Transient tolerant gate drive (-20 V / +10 V)
  • High switching frequency (> 1 MHz)
  • Fast and controllable fall and rise times
  • Reverse conduction capability
  • Zero reverse recovery loss
  • Source Sense (SS) pin for optimized gate drive
  • RoHS 3 (6+4) compliant
  • Consumer and Industrial Power Supplies
  • Power Adapters
  • LED Lighting Drivers
  • Fast Battery Charging
  • Power Factor Correction
  • Appliance and Industrial Motor Drives
  • Wireless Power Transfer
