Mitsubishi Electric Simulation Software

Mitsubishi Electric Simulation Software

October 11, 2021

Simulation Tool

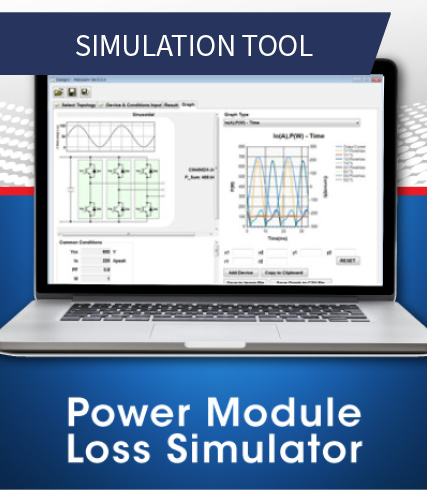

This is a simulation software designed for the power loss calculation with Mitsubishi Electric power modules under customers specific application conditions (2-level*1 and 3-level*2 inverter circuit) and for junction temperature rises as a consequence of power loss.

Mitsubishi Electric does not collect any information such as evaluation conditions or calculation results when you use this simulator.

Energy & Power Design Support

Allow us an opportunity to assess your project and help bring your vision to market faster.

About our Team of Experts

Our team of global applications engineers are available to answer your questions to ensure your power conversion or energy storage system design meets your performance expectations. If you’re transitioning from silicon to gallium nitride (GaN) or silicon carbide (SiC), we’ll help identify the right switching device to achieve the power density and increased efficiency your application requires.
