September 25, 2019 – Geneva, III.:
Richardson RFPD, Inc. announced today the availability and full design support capabilities for a robust family of silicon carbide semiconductor devices from Wolfspeed, a Cree Company.
According to Wolfspeed, the E-Series line of SiC MOSFETs represents the industry’s first automotive-qualified, PPAP-capable and humidity-resistant MOSFETs. The devices include Wolfspeed’s third-generation rugged planar technology, featuring the industry’s lowest switching losses and highest figure of merit.
The E-Series MOSFETs are optimized for use in EV battery chargers and high voltage DC/DC converters for on-board automotive power conversion systems, off-board charging, solar inverters and other outdoor applications.

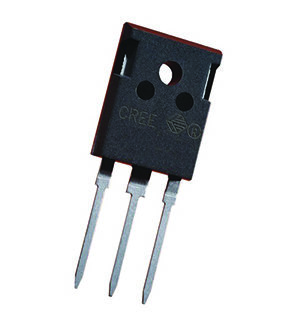

The devices feature a minimum of 900 V drain-source breakdown voltage (Vbr) across entire the operating temperature range, high-speed switching with low output capacitance, 900 V blocking voltage with low RDS(on), and fast intrinsic diodes with low reverse recovery (Qrr). The E-Series is easy to parallel, simple to drive, and available in TO-247-3 packages.
Additional key features of the new E-Series include:
FOR DETAILS CONTACT
DAVE ROSSDEUTCHER
Global Product Management Director – Energy & Power
P: 630 262 6800
drossdeutcher@richardsonrfpd.com
Part Number | Current Rating* (A) | Rds(On) (mΩ)* | Gate Charge (nC) | Reverse Recovery Charge (Qrr) (nC) | Output Capacitance (pF) | Reverse Recover Time (Trr) (ns) |
|---|---|---|---|---|---|---|
E3M0065090D | 35 | 65 | 30 | 150 | 60 | 35 |
E3M0120090D | 23 | 120 | 17 | 115 | 40 | 24 |
E3M0280090D | 11.5 | 280 | 9.5 | 47 | 20 | 20 |
*@ 25 ºC
To find more information or to purchase this product today online, please visit the E3M0065090D,
E3M0120090D and E3M0280090D webpages. The devices are also available by calling 1-800-737-6937 (within North America); or please find your local sales engineer (worldwide) at Local Sales Support. To learn about additional products from Wolfspeed, please visit the Wolfspeed storefront webpage.
