MMPX Coaxial-to-PCB System Solution
From HUBER+SUHNER

HUBER+SUHNER MMPX Series

The snap-on connector family MMPX is the most ideal coaxial-to-PCB system solution for operating frequencies up to 67 GHz. The comprehensive product range consits of cable connectors and assemblies, PCB connectors and adaptors to open standards.

MMPX connectors feature excellent electrical performance at smallest mechanical dimensions. The broadband characteristics, the small size and the outstanding performance permit new solutions for applications in numerous markets such as high speed digital testing and radio frequency testing (60 GHz WPAN), industrial, mobile communication, space and defence.

Huber Suhner Logo

Benefits of  MMPX Series

Thanks to the broadband characteristics, the excellent return loss and the true 67 GHz coaxial-to-PCB transition, MMPX helps in developing future proof RF systems.

The MMPX snap-on mechanism is completely decoupled from the electrical path and therefore specifically optimised for quick and reliable mating.

The minimal pitch on boards of 5.08 mm (0.2 inch) saves expensive board material.

The unique electrical and mechanical performance as well as the compact form makes MMPX ideal for a variety of applications.

MMPX Cable Connectors

MMPX connectors feature excellent electrical performance at smallest mechanical dimensions.

The broadband characteristics, the small size and the outstanding performance permit new solutions for applications in numerous markets.

Huber Suhner Logo
Part Number
Cable
Description
Availability
11MMPX50-2-1/1
EZ_86, SR_86
Precision Interface, Air Dielectric
For Semi-Rigid Cables:
  • Outer contact soldered
  • Center contact soldered
Straight cable plugs (male)
Order / Learn More
11MMPX-50-2-2/E
EZ_86, SUCOFORM_86, SR_86
For Semi-Rigid, Semi-Flexible and Flexible Cables:
  • Outer Contact Soldered
  • Center Contact Plugged
Straight cable plugs (male)
Order / Learn More
11MMPX-50-2-3E
MULTIFLEX_86_HE
Order / Learn More
16_MMPX-50-2-1/E
EZ_86, SUCOFORM_86, SR_86
For Semi-Rigid, Semi-Flexible and Flexible Cables:
  • Outer Contact Soldered
  • Center Contact Plugged
Right angle cable plugs (male)
Order / Learn More
16_MMPX-50-2-2/E
MULTIFLEX_86_HE
Order / Learn More
21_MMPX-50-2-1/E
EZ_86, SUCOFORM_86, SR_86
For Semi-Rigid, and Semi-Flexible Cables:
  • Outer Contact Soldered
  • Center Contact Plugged
Straight cable jack (female)
Order / Learn More

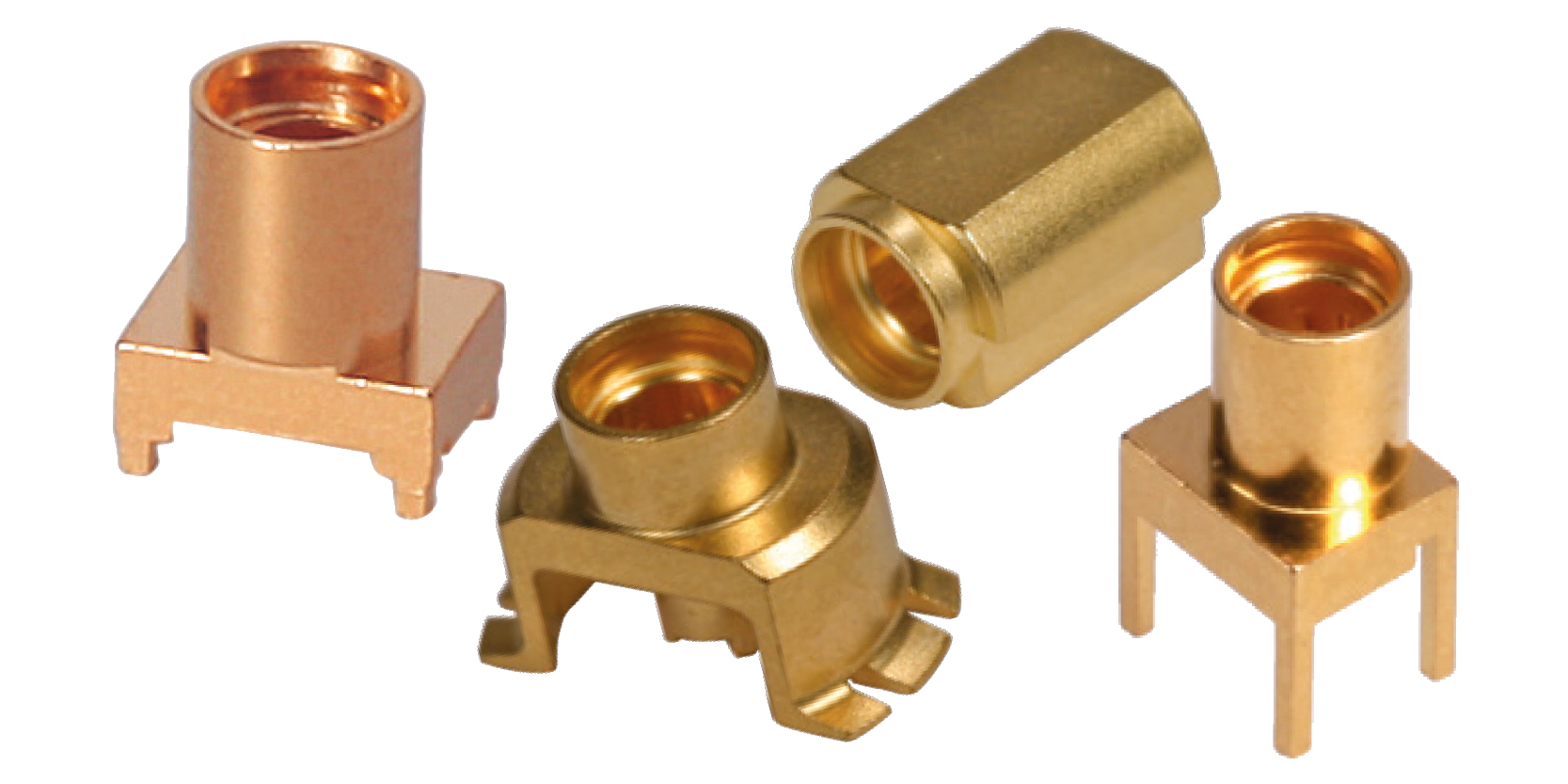

MMPX PCB Connectors

MMPX is the most ideal coaxial-to-PCB system solution for operating frequencies up to 67 GHz. The comprehensive product range consits of cable connectors and assemblies, PCB connectors and adaptors to open standards.

Huber Suhner Logo
Part Number
Description
Availability
82MMPXS50-0-2/M
Blister Tape Containing 10 pcs.
  • Full surface mount (SMD)
  • Decoupling tool 74_Z-0-0-491 or
    74_Z-0-0-555 recommended
Straight PCB Jacks (Female)
Order / Learn More
82MMPXS50-0-2M1
Reeled Blister Tape Containing 750 pcs.
Order / Learn More
96MMPXS50-0-2M1
Blister Tape Containing 10 pcs.
  • Semi surface mount (semi-SMD)
  • Short print legs
  • Decoupling tool 74_Z-0-0-491 or
    74_Z-0-0-555 recommended
Straight PCB Jacks (Female)
Order / Learn More
96MMPX-50-0-3NM
Reeled Blister Tape Containing 500 pcs.
  • Semi surface mount (semi-SMD)
  • Long print legs
Straight PCB Jacks (Female)
Order / Learn More
92MMPX-S50-0-1
Blister Tape Containing 10 pcs.
  • Full surface mount (SMD)
  • PCB cut out required
  • Decoupling tool 74_Z-0-0-491 or
    74_Z-0-0-555 recommended
Straight PCB Jacks (Female), Edge-Mount
Order / Learn More

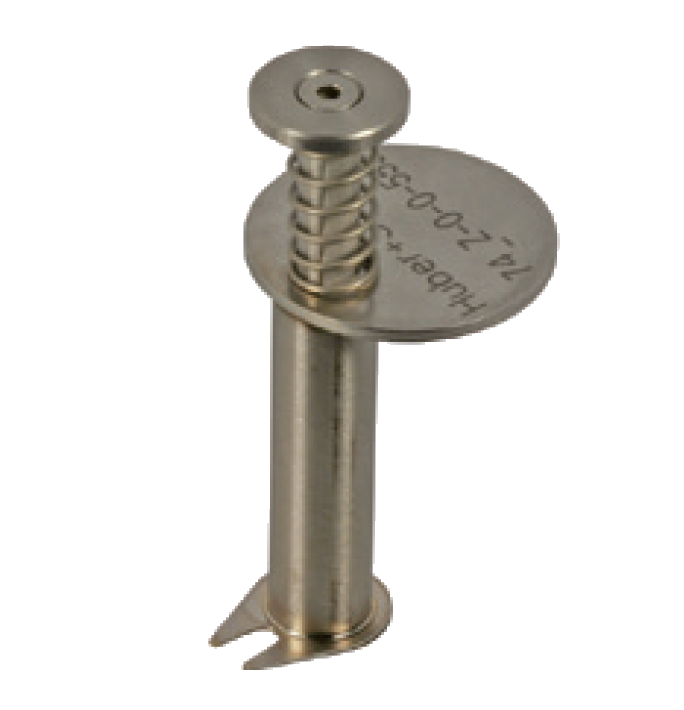

MMPX Decoupling Tool

This high-end decoupling tool is especially suited for decoupling MMPX combinations when the PCB connectors are placed very close to each other. The anodized surface is non-conductive and helps to prevent short-cutting circuits on the PCB.

Huber Suhner Logo
Part Number
Description
Availability
74_Z-0-0-555
“All-Round” Decoupling Tool
Order / Learn More
74_Z-0-0-491
“PCB” Decoupling Tool
Order / Learn More

MMPX Adaptor

HUBER+SUHNER is manufacturing a wide range of adaptors in various configurations like within series or between series, straight or angled designs and some with panel mount features. Precision adapter assortment focuses on performance for accurate RF measurements.

Huber Suhner Logo
Part Number
Description
Impedance
Interface Frequency Max.
Frequency Range
Return Loss
Availability
33PC185MMPX5-9E
PC 1.85 Plug (Male) /
MMPX Jack (Female)
50 Ω
67 GHz
DC to 67 GHz
≥ 20 dB
Order / Learn More
33MMPX-PC1-50
MMPX Plug (Male) /
PC 1 Jack (Female)
50 Ω
80 GHz
DC to 20 GHz
20 to 50 GHz
50 to 80 GHz
≥ 25 dB
≥ 20 dB
≥ 12 dB
Order / Learn More
