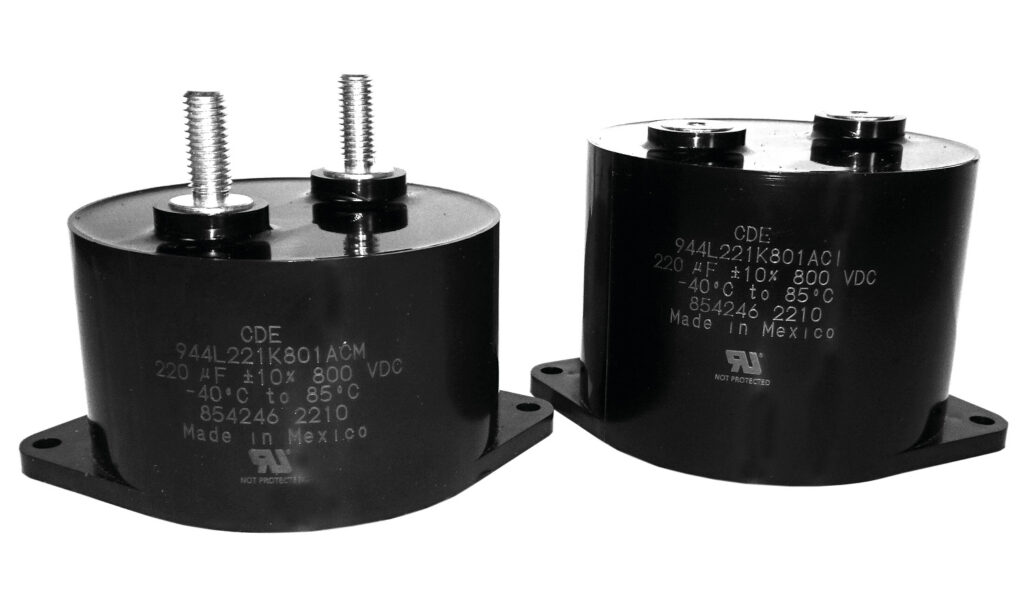

The Type 944L Low Inductance Series Capacitor is specifically designed for applications where low inductance and higher current ratings are desirable. Unique low inductance internal construction methods combined with low loss metallized polypropylene film dielectric provide high ripple current capability and lower ESL. Male or female terminal options offer design flexibility in a rugged UL94V-0 rated flame retardant plastic case and solid resin fill. Higher current ratings and increased resonant frequency combined with robust mounting flanges make the 944L series capacitor ideal for inverter applications in electric vehicle power inverters, wind power inverters and motor drives.
- Features
- Very low ESL in standard sizes
- High application frequency
- Low ESR
- Low profile
- Construction Details
- Construction Material: Plastic UL94V-0
- Resin Material: Dry Resin UL94V-0
- Terminal Material: Tin Plated Brass
- Specifications
Capacitance Range | 33 to 220 μF |
Capacitance Tolerance | ±10% standard |
Rated Voltage | 800 to 1400 Vdc |
Operating Temperature Range | -40 ºC to 85 ºC |
Maximum rms Current | 90A @ 55°C |
Maximum rms Voltage | 230 Vac |
Test Voltage between Terminal @ 25ºC | 150% rated DC voltage for 10 s |
Test Voltage between Terminals & Case @ 25ºC | 4 kVac @ 50/60 Hz for 60 s |
Life Test | 5000 h @ 85 ºC, rated voltage |
Type 944L Low Inductance Series Film DC Link Capacitors
Part Number | Capacitance (µF) | Voltage (Vdc) | Typical ESL (nH) | “Typical ESR – 10kHz (mΩ)” | Terminal | Availability | 944L101K801AAM | 100 | 800 | 10 | 0.5 | M8 Threaded Stud | Order / Learn More |
|---|---|---|---|---|---|---|
944L161K801ABI | 160 | 800 | 12 | 0.6 | M5 Threaded Insert | Order / Learn More |
944L221K801ACM | 220 | 800 | 15 | 0.7 | M8 Threaded Stud | Order / Learn More |
944L660K102AAM | 66 | 1000 | 10 | 0.5 | M8 Threaded Stud | Order / Learn More |
944L101K102ABI | 100 | 1000 | 12 | 0.7 | M5 Threaded Insert | Order / Learn More |
944L141K102ACI | 140 | 1000 | 15 | 0.8 | M5 Threaded Insert | Order / Learn More |
944L700K122ABM | 70 | 1200 | 12 | 0.8 | M8 Threaded Stud | Order / Learn More |
944L101K122ACI | 100 | 1200 | 15 | 0.9 | M5 Threaded Insert | Order / Learn More |
944L101K122ACM | 100 | 1200 | 15 | 0.9 | M8 Threaded Stud | Order / Learn More |
