The dual-sided high-flow cold plates from Advanced Thermal Solutions (ATS), provide the flexibility to mount components on both sides, increasing their exceptional cooling performance and adaptability for high-demand applications.
These cold plates can be used in high-flow applications, where coolant flows up to 4 GPM are readily accommodated. At these higher flow rates, a thermal resistance as low as 0.0021 C/W can be achieved.
Dual-Sided Cold Plates from ATS

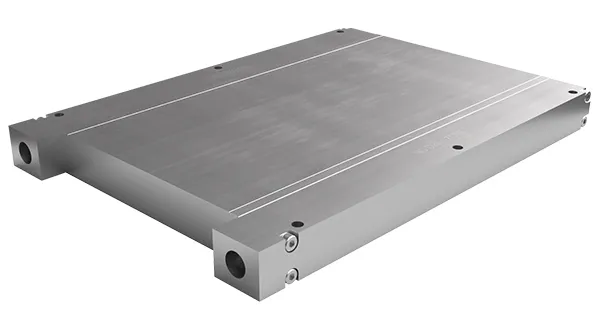

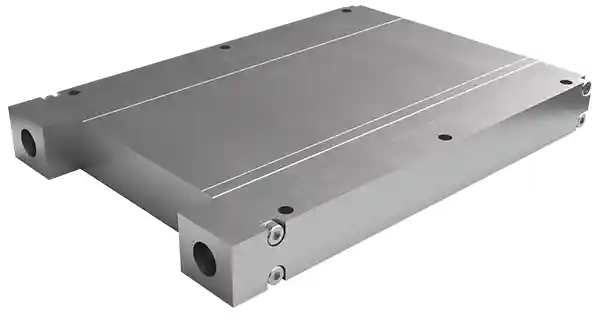

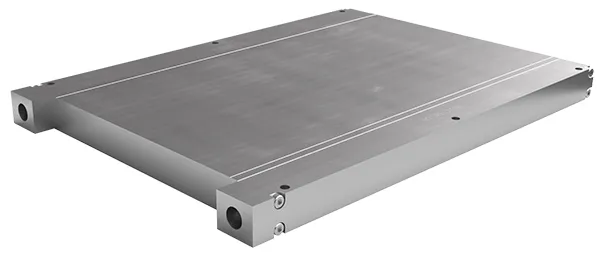

Part Number | Dimensions (L x W x H) | Material | Weight | Availability |  | ATS-THCP1000 | Component Area: 62 x 62 mm | Overall: 77 x 131 x 24 mm | Aluminum 6063-T5 | 491 g | Order / Learn More |
|---|---|---|---|---|---|---|
 | ATS-THCP1001 | Component Area: 128 x 78 mm | Overall: 143 x 147 x 24 mm | Aluminum 6063-T5 | 1046 g | Order / Learn More |
 | ATS-THCP1002 | Component Area: 198 x 78 mm | Overall: 209 x 147 x 24 mm | Aluminum 6063-T5 | 1540 g | Order / Learn More |
 | ATS-THCP1003 | Component Area: 260 x 127 mm | Overall: 275 x 196 x 24 mm | Aluminum 6063-T5 | 2,784 g | Order / Learn More |
 | ATS-THCP1004 | Component Area: 326 x 178 mm | Overall: 341 x 247 x 24 mm | Aluminum 6063-T5 | 4,446 g | Order / Learn More |
Each cold plate has etched “NO DRILL ZONES” on both sides to provide a visual guide for various mounting schemes. The component cooling area can only be drilled to a depth of 7mm to avoid damaging the internal fluid channels. If the coolant has particles, a #60 filter or finer is recommended to remove possible particles in the liquid.
Features
- Dual-sided cooling: Cool components on both sides of the cold plate
- High volumetric flow rate, up to 4 GPM
- Thermal resistance as low as 0.0021 C/W
- Compact size
- 1/4″ NPT threaded input and output
- Provides uniform cold plate surface temperature
- Maximum pressure: 100 psi
Applications
- Automotive Industry
- Uninterrupted Power Supplies
- Wind Turbines
- Photovoltaic Inverters
- Power Electronics
- Induction Heaters
- Motor devices
- Utility Vehicles
- Anywhere Power Devices
Innovative Technology
Superior heat transfer with a flexible design platform
Easy Connection
Industry standard threaded hole sizes allow hassle-free connection options
Safe & Reliable
Individually tested, leak-free
Custom Options
Choose from various options, fitting types, material types device mounting and more
