HM Power Module Family

1200 V & 1700 V Half-Bridge Power Module Footprint Designed for Ultra-High Power Density
RFPD
HM Power Module Family

HM Power Module Family

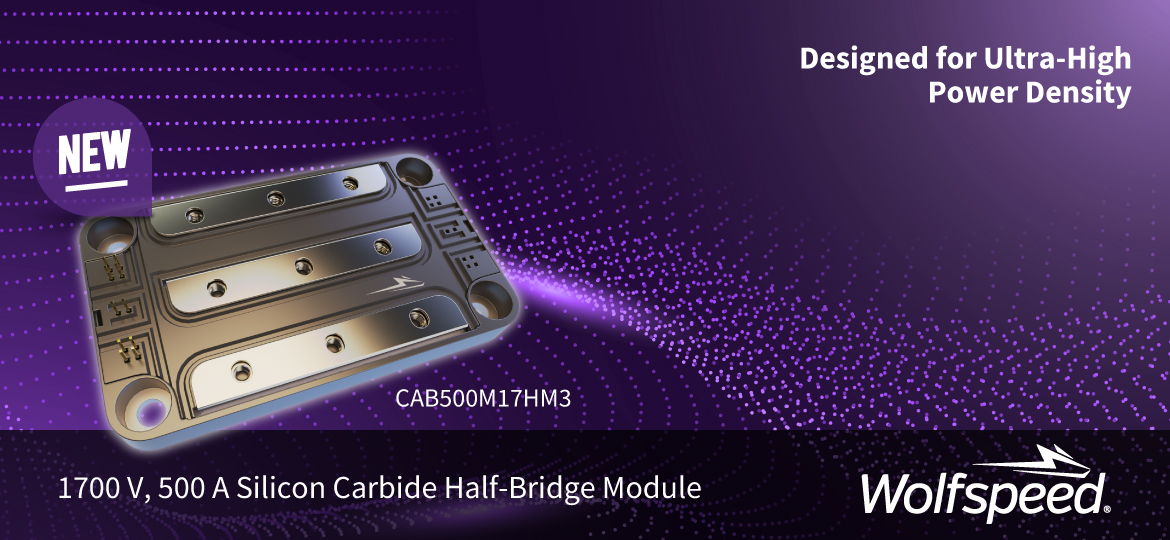

Wolfspeed has developed the HM power module platform to provide the benefits of Silicon Carbide (SiC) in power density sensitive applications; while maintaining the baseplate compatibility of a 62mm module.

The HM platform’s Silicon Carbide optimized packaging enables 175°C continuous junction operation; with a high-reliability Silicon Nitride (Si3N4) power substrate to ensure mechanical robustness under extreme conditions and a lightweight AlSiC baseplate.

The HM3 is a perfect fit for demanding applications such as industrial test equipment, medical power supplies, aerospace and traction drives.

Wolfspeed Logo
  • Features
  • High Performance 62mm Footprint
  • Low Inductance (4.9 nH) Design to Enable High Speed Switching & High Efficiency with Reduced Losses
  • High Junction Temperature (175 °C) Operation
  • Configurations Available with both Second & Third Generation SiC MOSFETs
  • Lightweight AlSiC Baseplate
  • Silicon Nitride Insulator for Robust  Thermal Cycling Capability
  • Benefits
  • Lightweight; Compact Form Factor with 62mm Compatible Baseplate Enables System Retrofit
  • Increased System Efficiency due to Low Switching & Conduction Losses of Silicon Carbide
  • High-Reliability Material Selection enabling High-Temperature Operation
  • Applications
  • Railway & Traction
  • Solar & Renewable Energy
  • EV Chargers
  • Industrial Automation & Testing
  • Medical Power Supplies
  • Motor Drives

Wolfspeed HM Power Module Family

Part Number
Package
Blocking Voltage (V)
Current Rating
Rds(on)
at 25°C
Maximum Junction Temperature
CAR600M12HN6
HM High Performance 62 mm
1200 V
600 A
175 °C
CAB760M12HM3
HM High Performance 62 mm
1200 V
760 A
1.33 mΩ
175 °C
CAB760M12HM3R
HM High Performance 62 mm
1200 V
760 A
1.33 mΩ
175 °C
CAS380M17HM3
HM High Performance 62 mm
1700 V
380 A
3.3 mΩ
175 °C
CAB500M17HM3
HM High Performance 62 mm
1700 V
500 A
2.5 mΩ
175 °C
CAR600M17HN6
HM High Performance 62 mm
1700 V
600 A
175 °C
CAB650M17HM3
HM High Performance 62 mm
1700 V
650 A
1.67 mΩ
175 °C

Wolfspeed Evaluation Tools

KIT-CRD-CIL12N-HM

Dynamic characterization evaluation tool optimized for the HM High Performance 62mm (HM) Module Platform

Learn More / Order Now

CGD1700HB3P-HM3

Evaluation gate driver tool optimized for the CGD1700zHB3P-HM3

Learn More / Order Now

Energy & Power Design Support

Allow us an opportunity to assess your project and help bring your vision to market faster.

Ask an Expert

About our Team of Experts

Our team of global applications engineers are available to answer your questions to ensure your power conversion or energy storage system design meets your performance expectations. If you’re transitioning from silicon to gallium nitride (GaN) or silicon carbide (SiC), we’ll help identify the right switching device to achieve the power density and increased efficiency your application requires.
