Industrial electric motors, including industrial low voltage motor drives, servo drives, heat pumps and air conditioners, together account for more than 45% of all global electricity consumed annually. Wolfspeed silicon carbide (SiC) devices enhance overall motor efficiency by up to 2.6% or more, reduce overall system losses by up to 50%, and meet stringent efficiency standards including IE4, SEER, ESSER and SCOP levels in Europe, the Middle East, and Africa; and China’s GB21455 standards. Additionally, silicon carbide enables system designers to integrate drives and motors, designing smaller, lighter, less complex embedded industrial drives.
Industry-Leading Design Support Tools
Wolfspeed
25 kW FM3 Three-Phase Inverter CRD25DA12N-FMC
This three-phase inverter demonstrates unparalleled system level power density and efficiency obtained by using the Wolfspeed WolfPACK™ FM3 power module platform. It is ideal for scaling up to higher power levels.
Wolfspeed
SpeedVal Kit™ Modular Silicon Carbide Evaluation Platform
This evaluation platform speeds the transition from silicon to silicon carbide (SiC) with a flexible set of building blocks for in-circuit evaluation of system performance at real operating points.
Wolfspeed
11 kW High Efficiency Three-Phase Motor Drive Inverter
This reference design demonstrates how to use silicon carbide (SiC) MOSFETs to optimize the performance of a motor drive for auxiliary motors in electric vehicles, HVAC and other similar applications.
Wolfspeed

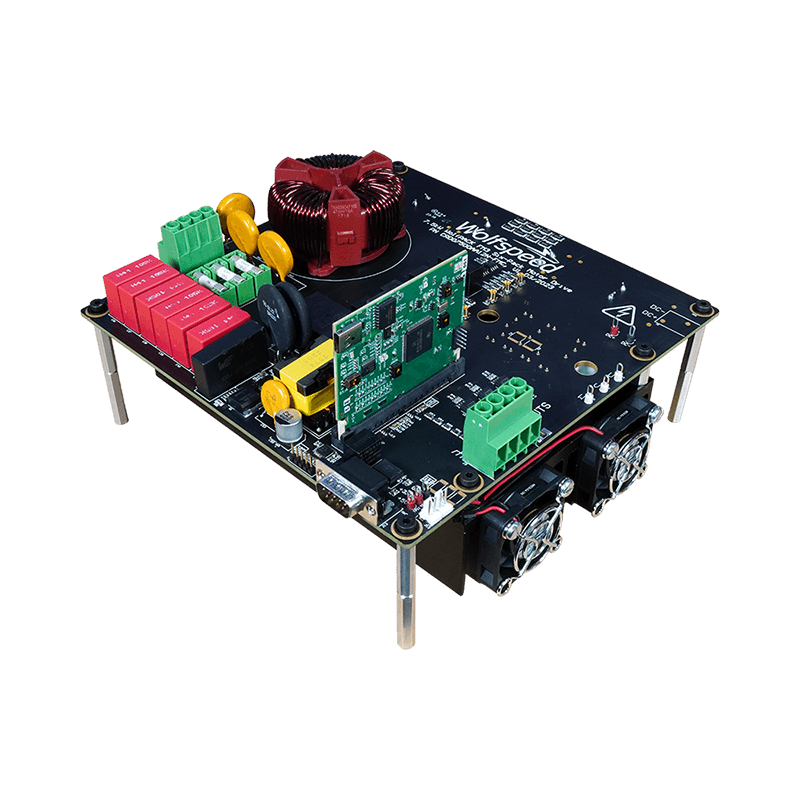

7.5 kW Three-Phase Motor Drive Inverter Reference Design
This reference design demonstrates the application of Wolfspeed’s WolfPACK™ FM3 power modules to create a high power density three-phase inverter acting as the output stage of a complete industrial motor drive solution.
Featured Content
Learn how SpeedFit™ Design Simulator enables more precise motor drive design
Quickly test Wolfspeed’s silicon carbide power devices and design more efficient, smaller and quieter industrial single and three-phase motor drive systems including industrial low voltage motor drives, servo drives, and compressors for heat pumps and air conditioners. SpeedFit offers a detailed selection of heat sink parameters, bringing your simulation closer to real-time conditioners and implementation.
