Wind Turbine UPS Retrofit Solutions

from LICAP Technologies
LICAP Wind Turbine UPS Retrofit Solutions

LICAP Wind Turbine UPS Retrofit Solutions

LICAP Technologies has partnered with Windurance LLC to develop an ultracapacitor retrofit solution to replace the existing battery-based energy storage and charger system in GE 30Nm & 20Nm wind turbine pitch battery boxes. It is designed as a “drop in” replacement not requiring any modification to the pitch control system box or operating system. The ultracapacitor modules and capacitor charger unit (CCU) are common across the different pitch box iterations with only harness, bracket & mounting accommodations.

LICAP Ultracapacitor Energy Storage Module

SM0500-016-GER​
Capacitance Rated1
500F
Capacitance Tolerance
-0/+20%
Voltage Rated
16V DC
Voltage Surge2
17V DC
ESR (DC) – maximum initial
1.8mΩ
Operating temperature range
-40℃ to +65℃
Storage temperature range
-40℃ to +70℃

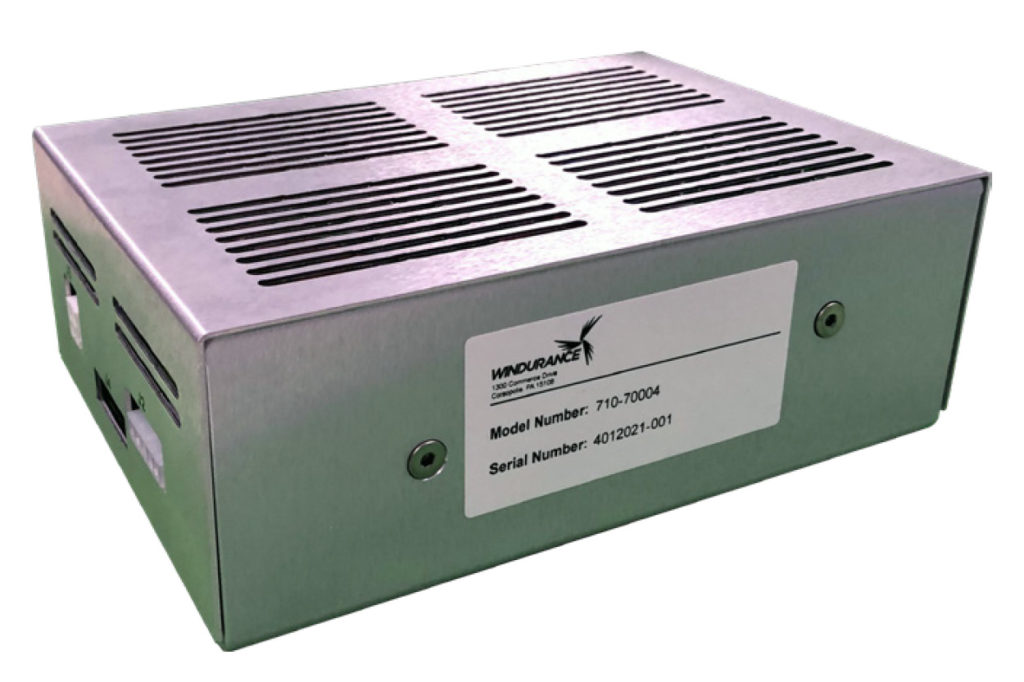

Windurance Capacitor Charging Unit

700-70004, 700-70005, 700-70006
Input Voltage
230Vac +/- 10%, 299Vac max, @ 1A
Frequency
47Hz to 63Hz
Output Current
3A max
Power
180W max
Voltage
20Nm w/4 modules 58V, 30Nm w/6 modules 87V
Communication
Physical layer, isolated RS485, 9600 baud 2 wire, protocol compatible with GE 20Nm and 30Nm battery charging systems
Module Voltage Sensing
Individual and total stack sensing

LICAP Technologies Inc.

LICAP Technologies Inc. is a world-class manufacturer of ultracapacitor and lithium-ion capacitor products with market leading performance. The key element of our product performance is the industry leading dry electrode technology. LICAP’s Activated Dry Electrode combines manufacturing efficiency with innovative fabrication methods that results in outstanding ESR, Capacitance, and Life Cycle performance characteristics. At LICAP, we also conduct R&D to identify innovative new materials and processes to improve product performance and reduce overall costs. Our primary research center, electrode production facility and USA Headquarters is located at Sacramento, CA USA. Ultracapacitor product R&D and production are conducted at our LICAP facility in Tianjin, China.

Windurance LLC

Windurance LLC designs and delivers performance-optimized wind turbine blade pitch technologies and power conversion equipment. In operation for more than 20 years, Windurance has accumulated vast knowledge, experience and a reputation for high performance products that consistently meet the needs of customers in the Wind Energy market. Windurance has an installed base of products in wind turbines totaling 3GW and leverages Turbine Availability Science™ to engineer optimum blade pitch control systems and significantly increase the amount of time a wind turbine is available to power your project.
