Design Smarter GNSS Systems with Taoglas: Precision Positioning, Timing & Interference Resilience

Design Smarter GNSS Systems with Taoglas: Precision Positioning, Timing & Interference Resilience

As demand grows for centimeter-level positioning, autonomous systems, precision agriculture, surveying, and intelligent transportation, GNSS designers require solutions that deliver both exceptional signal quality and simplified system integration. Taoglas addresses these requirements with the GPDF5012.A Multi-Band GNSS Antenna and the TFM.120A GNSS Front-End Module, a complementary pair designed to maximize the performance of modern multi-frequency GNSS receivers.

TAOGLAS logo with a green and dark blue abstract airplane icon above the word TAOGLAS.

Advanced Multi-Band GNSS Positioning Solutions

Together, the GPDF5012.A and TFM.120A provide a complete signal acquisition and conditioning solution that helps designers achieve superior accuracy, increased reliability, and streamlined integration for next-generation positioning applications.

GPDF5012.A

Multiband High Precision GNSS Stacked Patch Antenna 50*50*12 mm

The Taoglas GPDF5012.A is a high performance, multi-band passive GNSS antenna that has been carefully designed to provide fantastic positional accuracy on the full GNSS spectrum. It covers GPS/QZSS L1/L2/L5, GLONASS G1/G2/G3, Galileo E1/E5a/E5b, BeiDou B1/B2a/B2b, NAVIC L5, as well as SBAS (WAAS/EGNOS/GAGAN/SDCM/SNAS).

Correct implementation of the GPDF5012.A allows the user to achieve higher location accuracy, as well as stability of position tracking in urban environments. The stacked patch construction has excellent performance across the full bandwidth of the antenna. Its design has an even gain across the hemisphere, giving excellent axial ratio, which in turn makes it extremely resilient to multipath rejection and provides excellent phase centre stability.
GPDF5012.A
Two Taoglas RF modules; left shows TAOG LAS branding with two circular contact pads, right has a blue film and four holes/pads on top surface.
GNSS Type
Passive GNSS
GNSS Bands
L1/L2/L5
Mechanical Style
Patch
Impedance
50
Minimum Operating Temperature (℃)
-40
Maximum Operating Temperature (℃)
85
Mounting Style
Adhesive, Pin
Frequency Range
1176 – 1610 MHz

TFM.120A

Surface Mount GNSS front end covering the full Multiband GNSS Spectrum including L-Band

The Taoglas TFM.120A features a SAW/LNA/SAW/LNA topology in both the low and high band signal paths to prevent unwanted out-of-band interference from overdriving the GNSS LNAs or receiver. The SAW filters have been carefully selected and placed to provide excellent out-of-band rejection while also maintaining a low noise figure.
  • Superior Signal Quality – Integrated filtering and low-noise design minimize interference and optimize receiver performance.
  • Optimized Gain Architecture – Dual-stage amplification delivers strong GNSS signals without compromising signal integrity.
  • Compact Footprint – Low-profile design reduces board space and eliminates the need for external RF components.
  • Faster Time-to-Market – Expertly engineered, highly integrated solution that simplifies development and accelerates deployment.
TFM.120A

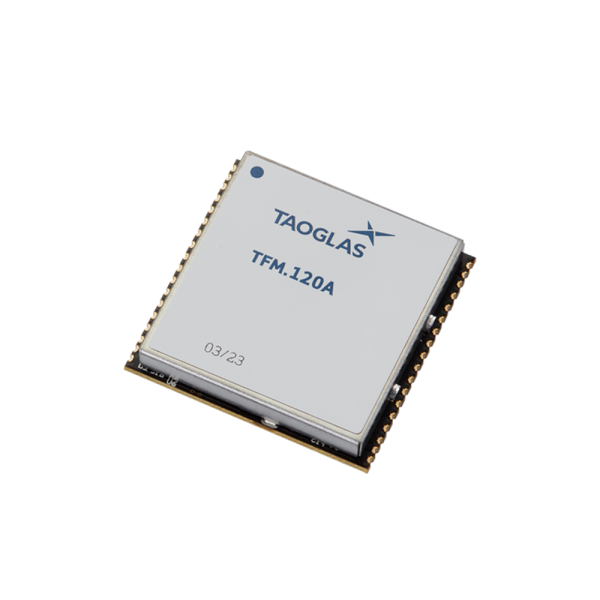

Taoglas TFM.120A RF module in a metal shield can with side edge pins

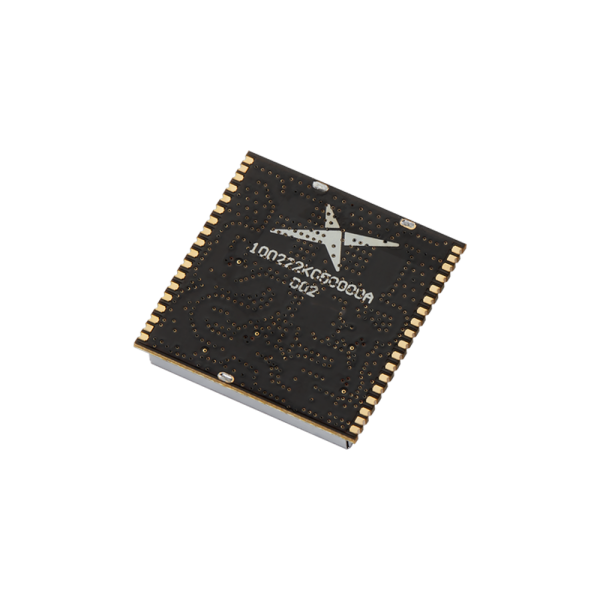

Black square microcontroller chip with gold pins along edges, star logo and white markings on top.
Series
TFM
GNSS Bands
L1/L2/L5/L-Band
Frequency Range
1160MHz – 1610MHz
Supplier Device Package
SMD/SMT

On-Demand Webinar

Multi-Band GNSS Antenna Integration within Aerospace & Defense

In this exclusive webinar, Kevin H Blakeley, Head of Aerospace & Defense, and Pat Frank, Principal RF Engineer at Taoglas, share expert insights on multi-band GNSS antenna performance and best practices for integration in Aerospace and Defense applications.

Watch Now

What is Covered:

  • Selecting the optimal antenna for Aerospace and Defense applications.
  • Key considerations for assessing antenna performance.
  • Techniques for enhancing precision with multi-band antennas.

Who Should Watch?

Engineers and decision-makers in Aerospace & Defense looking to optimize antenna performance, integration, and reliability.

Soldiers in desert gear watch a drone flying overhead at a rocky ridge formation used for surveillance or reconnaissance.

Internet of Things (IoT) Design Support

Allow us an opportunity to assess your project and help bring your vision to market faster.

Ask an Expert

About our Team of Experts

Richardson RFPD takes great pride in our ability to support IoT product and solution customers globally. RFPD global locations employ over 150 field technical resources who work side-by-side with design engineers to provide one-on-one support for new and existing IoT designs. Our 40+ global application engineers with access to our 6 fully functioning electronics test labs can answer most IoT related questions promptly and resolve IoT issues quickly and effectively. We welcome your IoT questions and the opportunity to offer personal attention to your specific IoT goals and challenges.
