Long-Range, Low-Power Consumption Secure Device to Cloud Solutions

From Semtech
Semtech LoRa® Wireless Products

Semtech LoRa® Wireless Products

LoRa is the de facto wireless platform of Internet of Things (IoT). Semtech’s LoRa chipsets connect sensors to the Cloud and enable real-time communication of data and analytics that can be utilized to enhance efficiency and productivity.

Created by Semtech to standardize LPWANs, LoRa provides for long-range communications: up to three miles (five kilometers) in urban areas, and up to 10 miles (15 kilometers) or more in rural areas (line of sight). A key characteristic of the LoRa-based solutions is ultra-low power requirements, which allows for the creation of battery-operated devices that can last for up to 10 years.

LoRa Portfolio of Products

LoRa ConnectTM

The LoRa Connect portfolio consists of sub-GHz, 2.4GHz and dual-band transceiver chips and reference designs.

LoRa CoreTM

The LoRa Core portfolio consists of gateway chips and reference designs, including the SX130X series gateway chips.

LoRa EdgeTM

LoRa Edge significantly reduces power consumption by determining asset location in a Cloud-based solver.

Evaluation Kits

Semtech offers a wide range of evaluation kids to enable solutions development based on Semtech’s LoRa devices.

Why LoRa®?

Semtech’s LoRa devices and software solutions offer an efficient, flexible and economical solution to real-world problems in rural and indoor use cases, where Cellular, Wi-Fi and Bluetooth Low Energy (BLE) networks are ineffective.

5.9 million

Gateways with LoRa devices deployed worldwide (March 2023)

300 million

End nodes with LoRa devices deployed worldwide (March 2023)

181

Public network operators and growing (March 2023)

>50%

Of all non-cellular LPWA connections will feature LoRa by 2026 (ABI Research)

LoRa CoreTM - Wireless RF

Part Number
Frequency
Features
Availability
LLCC68IMLTRT
960 MHz
Half-Duplex ISM Transceiver
Order / Learn More
LR1121IMLTRT
868 MHz
LoRa GFSK Half-Duplex Transceiver
Order / Learn More
SX1261IMLTRT
960 MHz
Low Power Long Range Transceiver
Order / Learn More
SX1262IMLTRT
960 MHz
Low Power Long Range Transceiver
Order / Learn More
SX1268IMLTRT
960 MHz
Low Power Long Range Transceiver
Order / Learn More
SX1272IMLTRT
1020 MHz
Low Power Long Range Transceiver
Order / Learn More
SX1276IMLTRT
1020 MHz
SX1276 Transceiver
Order / Learn More
SX1278IMLTRT
1020 MHz
SX1278 Transceiver
Order / Learn More
SX1280IMLTRT
2400 MHz
SX1280 Long Range Low Power Transceiver
Order / Learn More
SX1281IMLTRT
Half Duplex Tranceiver
Order / Learn More

FEATURES

  • Long range of up to 30 miles outdoor line of sight
  • Deep indoor coverage for hard to reach areas
  • Bidirectional communication link with adaptive data rates
  • Low power sensors with extended battery lifetime of up to 10 years
  • 100nA sleep mode
  • 4.6mA active receive mode
  • LoRaWAN®, IEEE 802.15.4g and WMBus compliant
  • Available for any operating environment
  • LoRa ConnectTM - Wireless RF

    Part Number
    Features
    Availability
    SX1250IMLTRT
    The SX1250 is a sub-GHz RF front end device designed to work along with Semtech’s SX1302 baseband engine.
    Order / Learn More

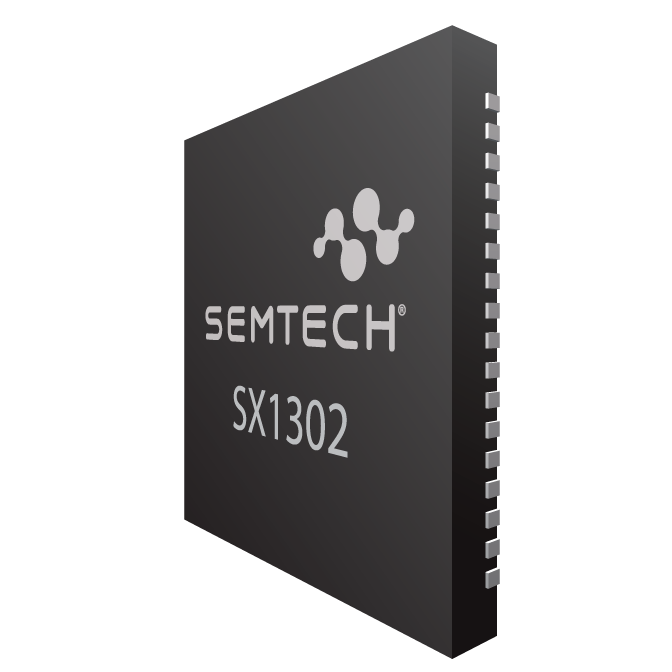

    SX1302IMLTRT
    The SX1302 is a new generation of baseband LoRa® chip for gateways.
    Order / Learn More

    FEATURES

  • Long range of up to 30 miles outdoor line of sight
  • Deep indoor coverage for hard to reach areas
  • Bidirectional communication link with adaptive data rates
  • LoRaWAN® compliant
  • Scalable, multi-channel, high-capacity gateways powered by SX1301, SX1302, SX1303, and SX1308
  • Available for any operating environment
  • Supported by the LoRa Alliance®, an open IoT alliance for Low Power Wide Area Network (LPWAN) applications
  • LoRa EdgeTM - Wireless RF

    FEATURES

  • Worldwide sub-GHz ISM frequency bands supporting multi-regions in the range of 150-960MHz with a single bill of materials (BOM).
  • Global 2.4GHz ISM band and SATCOM S-band (1.9-2.2GHz) - LR1120 exclusive
  • LoRaWAN® standard compliant as defined by the LoRa Alliance®
  • GNSS (GPS/BeiDou) low-power scanning
  • 802.11b/g/n Wi-Fi access point ultra-low-power passive scanning
  • LoRaWAN security standard compliant with hardware-based AES-128 cryptographic engine
  • End-to-end protection against unauthorized access via device, join server, network, and application encryption keys per the LoRaWAN standard.
  • Evaluation Kits - Wireless RF

    Semtech offers a wide range of evaluation kids to enable solutions development based on Semtech’s LoRa devices.
    Development Kits
    Frequency
    Features
    Availability
    LR1121DVK1TBKS
    868 MHz
    LR1121 Development Kit Configured for Europe
    Order / Learn More
    SX1302IMLTRT
    915 MHz
    LR1121 Dev Kit Configured for North America
    Order / Learn More
    LR1121DVK1TGKS
    490 MHz
    LR1121 Development Kit Configured for China
    Order / Learn More
    SX1261DVK1BAS
    868 MHz
    SX1261 Development Kit for Europe
    Order / Learn More
    SX1261DVK1CAS
    923 MHz
    SX1261 Development Kit for Asia
    Order / Learn More
    SX1262DVK1CAS
    915 MHz
    SX1262 Development Kit for North America
    Order / Learn More
    SX1262DVK1CBS
    923 MHz
    SX1262 Development Kit for Korea
    Order / Learn More
    SX1262DVK1DAS
    866 MHz
    SX1262 Development Kit for India
    Order / Learn More
    SX1262DVK1PAS
    915 MHz
    SX1262 Development Kit for North America and Australia
    Order / Learn More
    SX1268DVK1GAS
    490 MHz
    SX1268 Development Kit for China and Asia
    Order / Learn More
    SX1280DVK1ZHP
    2400 MHz
    Development Kit for SX1279
    Order / Learn More
    SX1280ED1ZHP
    2400 MHz
    Development Kit for SX1280
    Order / Learn More
    Mbed Shields
    Frequency
    Features
    Availability
    LLCC68MB2BAS
    868 MHz
    Mbed Shield LLCC68 Configured for Europe
    Order / Learn More
    LLCC68MB2CAS
    915 MHz
    Mbed Shield LLCC68 Configured for North America
    Order / Learn More
    LLCC68MB2GAS
    490 MHz
    Mbed Shield LLCC68 Congured for China
    Order / Learn More
    SX1261MB2BAS
    868 MHz
    SX1261 Mbed Shield for Europe
    Order / Learn More
    SX1272MB2DAS
    915 MHz
    SX1272 Mbed Shield
    Order / Learn More
    SX1276MB1LAS
    915 MHz
    SX1276 Mbed Shield
    Order / Learn More
    SX1276MB1MAS
    868 MHz
    SX1276 Mbed Shield
    Order / Learn More
