The ZED-X20P is the first product based on the u-blox X20 GNSS platform, designed in Switzerland to deliver exceptional accuracy and reliability, supporting all GNSS constellations and frequencies. Whether in urban environments or remote locations, this receiver ensures consistent, high-precision positioning.
ZED-X20P from u-blox
With centimeter-level accuracy and advanced capabilities like RTK, PPP-RTK, and PPP, the ZED-X20P is ideal for industries that depend on precise location data, from agriculture and automation to surveying and beyond. Key to its superior performance is the quality of its measurement, which stands out in the market with minimal cycle slips and exceptionally clean measurements. Its all-band, global coverage provides real-time, high-performance positioning, making the ZED-X20P a versatile and dependable solution for even the most demanding applications.
Specifications
All-Band Receiver | ZED-X20P |
|---|---|
GNSS signal support | GPS L1C/A, L2C, L5 GAL E1, E5a, E6 BDS B 1I, B1C, B2a, B31 QZSS L1C/A, L1C/B, L2C, L5, L6 NAVIC L5 SBAS 1 |
Accuracy by mode | Standalone: 1.2m RTK: 0.6 cm + 1 ppm CEP PPP-RTK: < 6 cm PPP: < 10 cm |
Max update rate (all GNSS enabled,
RTK, RAW) | 25 Hz |
L-band support | Integrated (1539-1559 MHz) |
Future-proof design | Industry-leading single-chip design |
u-blox service support | PointPerfect PointPerfect Live PointPerfect Global (PPP) |

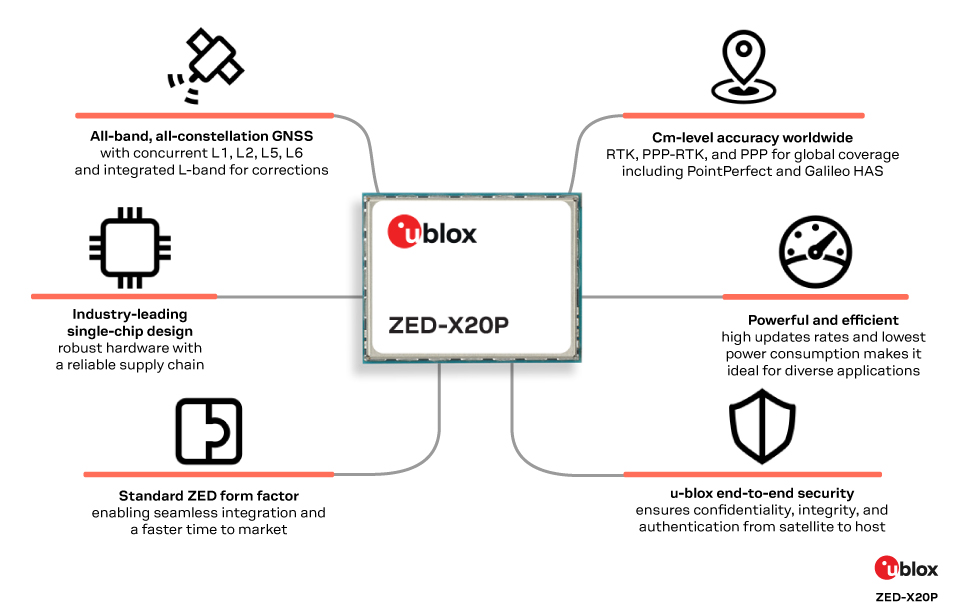

Key Features
- All-band all constellation GNSS receiver
- Best position accuracy and availability in different environments
- RTK, PPP-RTK and PPP algorithms expanding the limits of performance
- Highest quality GNSS raw data
u-blox end-to-end hardened security
Applications
Industrial Automation
- Construction
- Surveying
- Open-pit mining
- Precision agriculture
- Maritime
- Rail
- Deformation monitoring
- Structural health monitoring
Emerging Industrial Markets
- Mobile robotics
- UAVs
- Robotic lawnmowers
- Smart cities
- Virtual Reality

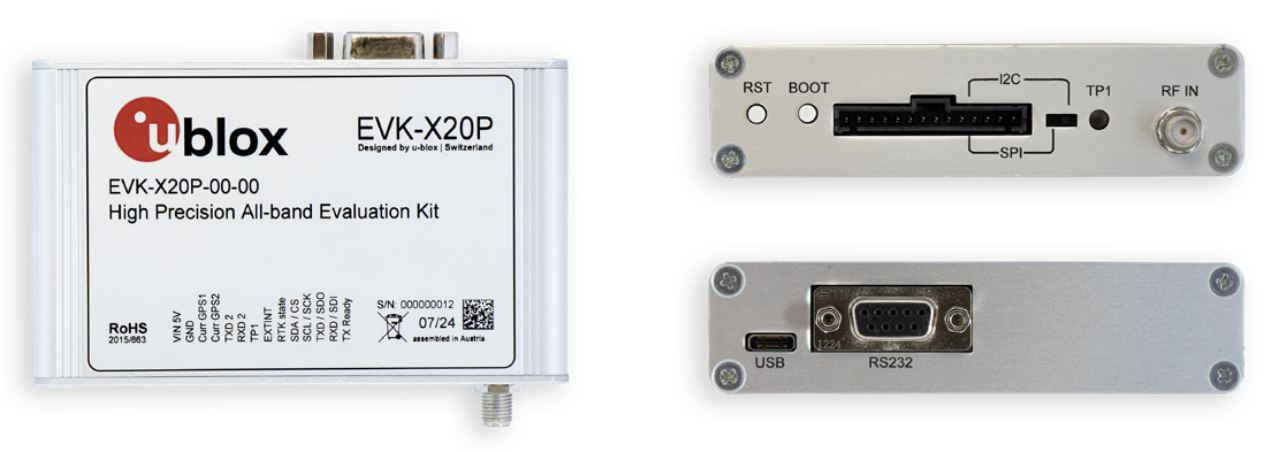

EVK-X20P from u-blox
The EVK-X20P evaluation kit allows efficient evaluation of ZED-X20P, the u-blox all-band high precision positioning module. The ZED-X20P module provides all-band GNSS positioning and comes with built-in RTK technology providing centimeter-level accuracy to users. Augmentation services may be formatted as SPARTN 2.0 or RTCM 3.4.
The evaluation kit relies on the networking capability of the computer running u-center 2 to deliver correction services to the ZED-X20P. u-center 2 is a powerful platform for the evaluation of u-blox GNSS receivers, with which data can be logged as well as visualized in real time.
Key Features
- USB (Type-C connector) available for power supply and data transfer
- Coin battery (not included) for backup power supply
- 14-pin front connector to access all interface
Kit Includes
- EVK-X20P unit
- Type-C USB cable
- Antenna ground plane
- Breakout cable for 14-pin connector
- Active all-band GNSS antenna with 3 m cable
- Promotional PointPerfect service trial
