Carlisle Test & Measurement Solutions

Carlisle Interconnect Technologies is an industry leader in test and measurement applications, specializing in high-performance, cost-effective and short lead-time solutions.

Core HC™

Carlisle Interconnect Technologies’ CoreHC™ 2.5 mm pitch direct attach cable assembly is a multichannel, test-point system targeted for high-density boards where space is limited. It offers reduced trace lengths and higher signal integrity compared to boards using traditional SMA-type connectors. On average, there is 4 times higher available bandwidth for signals in the same real estate as SMA connectors.

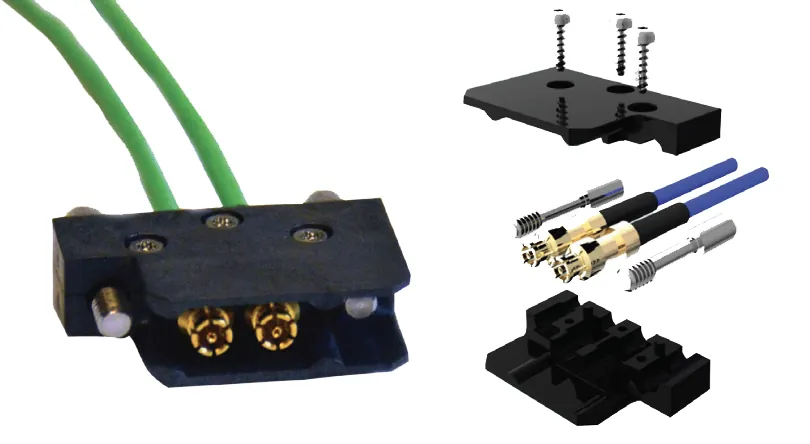

CoreGD™

Carlisle Interconnect Technologies’ (CarlisleIT) CoreGD™ is a high-performance, multi-port, interconnect system that offers excel- lent signal integrity for complex layouts and crowded PCBs used in a variety of applications

RF Adapters

Carlisle Interconnect Technologies’ offer a full-gender family of Precision RF adapters in different connector options to cover applications ranging from DC – 65 GHz. These adapters come standard in a passivated stainless steel body with a captivated beryllium copper center conductor to ensure mating repeatability. In addition, options such as gold-plated housing or non-captivated center conductor are also available to fit the desired application. All adapters are 100% tested to ensure optimum performance over their respective frequency range.
Percision RF Adapters

Precision RF Connectors

Carlisle Interconnect Technologies (CarlisleIT) offers a wide portfolio of low-loss, high-frequency Precision RF Connectors in various configurations for design flexibility and multiple applications.

Available in vertical (stripline and co-planar waveguide) and edge launch, styles are available in soldered and solderless solutions up to 67 GHz, also available in customized solutions.

Carlisle RF Connector Soldermount
Carlisle RF Connector Solderless

RF Coax Jumpers

Carlisle Interconnect Technologies (CarlisleIT) offers RF cable jumpers in multiple configurations to cater to most applications. We currently supply 1.85 mm, 2.40 mm, 2.92 mm, and 3.50 mm connector types on 0.079″ coax, but if you are looking for a length or configuration not found in the options below, please contact us to enquire about custom orders. We aim to provide an end-to-end solution that encompasses Precision RF Connectors, RF Jumpers, and Adapters.

Passive Probes

Part of Carlisle Interconnect Technologies’ (CarlisleIT) full lineup of customizable interconnect solutions, the Passive Probe is a standard, commercial off-the-shelf system engineered to deliver consistent, repeatable, and dependable results. The Passive Probe provides an industry-leading combination of high bandwidth and high voltage in a low cost, rugged, general purpose probing solution, while the small UL-approved probe body and compact head enables the user to have access to small geometry circuit elements.
Carlisle Passive Probes

Card Edge Connectors

Part of Carlisle Interconnect Technologies’ (CarlisleIT) full lineup of customizable interconnect solutions, the Passive Probe is a standard, commercial off-the-shelf system engineered to deliver consistent, repeatable, and dependable results. The Passive Probe provides an industry-leading combination of high bandwidth and high voltage in a low cost, rugged, general purpose probing solution, while the small UL-approved probe body and compact head enables the user to have access to small geometry circuit elements.
Card Edge Connectors Carlisle

RF & Microwave Support

Allow us an opportunity to assess your project and help bring your vision to market faster.
