Military/Industrial EMI Filter Connectors

Benefit from Spectrum Control’s unparalleled engineering and industry expertise
EMI Filter & Power Circular Connectors from Spectrum Control

EMI Filter & Power Circular Connectors from Spectrum Control

Spectrum Control offers custom circular connectors in EMI-filtered or unfiltered styles, including military standards. The EMI-filter, compact shell connectors provide an effective filtering device that reduces the amount of real estate required within a product enclosure. Using their expertise in EMI filter design and manufacturing, Spectrum Control offers planar-style filter arrays, available in C and Pi circuits up to 200 nF in most configurations. Other filter circuits, including transient protection, are also available.

Spectrum Control’s EMI-filter connector offerings are fully vertically-integrated and manufactured in the USA. Spectrum Control builds components in-house, including ceramic capacitors and shells, providing customers with high-quality parts.

Api Tech Logo

Power Connector

Benefits

  • Integrated common mode and differential mode EMI filtering in a circular connector package
  • Replaces traditional larger EMI box filters (power entrry filter) with similar performance
  • Mates to a standard MIL-DTL-38999 connector insert arrangement 21-11
  • Filtering included with space-saving and reduced installation cost for the system
  • Ideal for input power with systems using SMPS or any electronic system near radio communications equipment

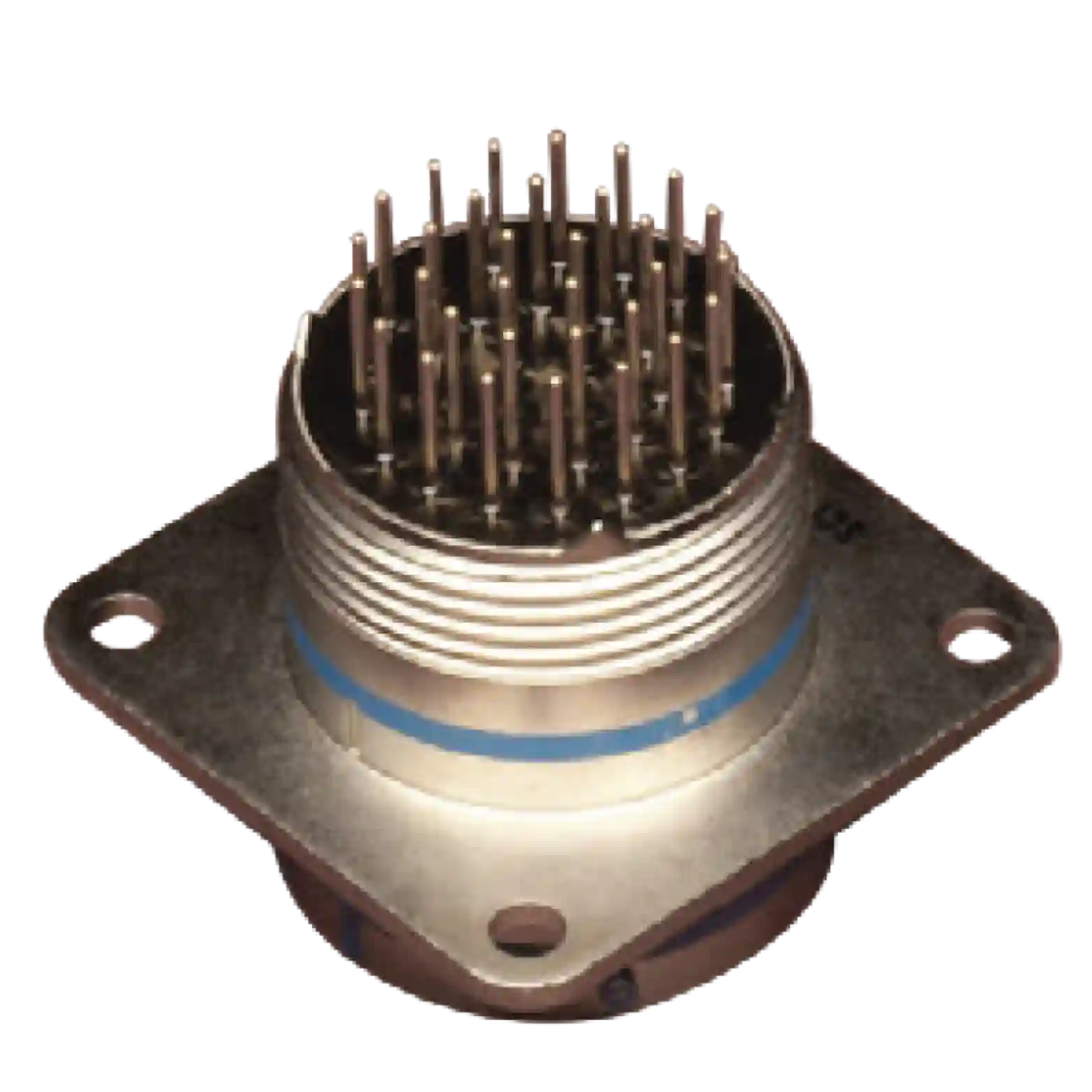

  • Transient Survival

    Benefits

  • Meets standards for RTCA/DO-160 section 22 lightning requirements
  • Withstands very high voltages surges for airborne equipment
  • Selective load options with consistent pin-to-pin performance
  • Provides increased safety, system capacity and overall efficiency
  • Custom designs available
  • Composite Shell

    Benefits

  • Rugged and durable for weight-sensitive applications
  • Designed to displace traditional metal connector shells for substantial weight reduction
  • Custom mechanical variations may be provided without usual tooling charges
  • Circular connectors in MIL-38999 Series III and IV, available EMI-filtered or unfiltered
  • Nickel and cadmium plating available
  • Custom designs available

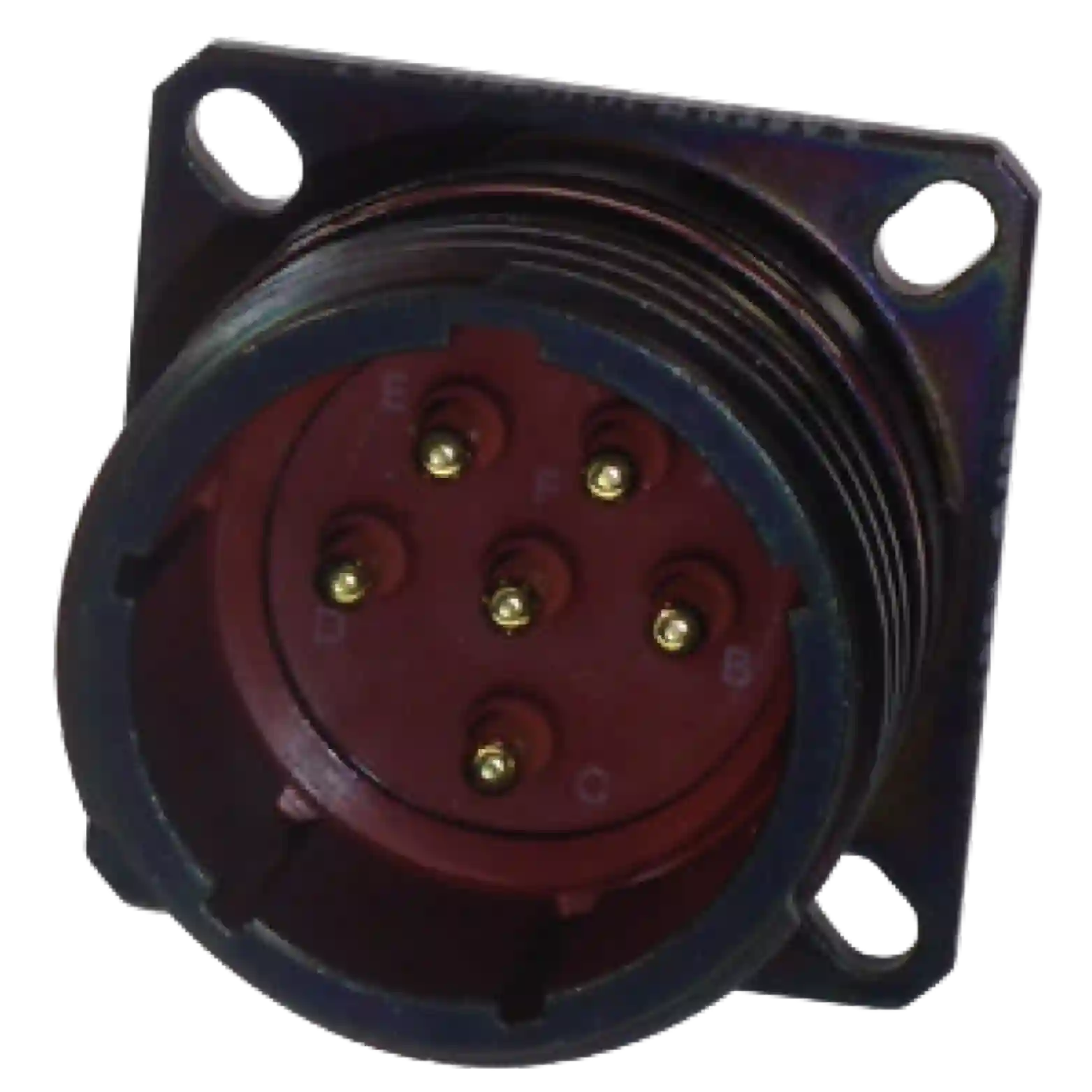

  • Black Nickel Zinc Plating

    Benefits

  • Resistant to corrosion and maintains electrical conductivity while reducing reflectivity on the surface (500 hours salt)
  • Approved for MIL-DTL-38999 and other standard MIL configurations
  • Maintains the mechanical integrity of plated connectors and will not require new drawings, tooling or gauges
  • RoHS-compliant (replacement for cadmium plated connectors)
  • Custom designs available
  • Hermetically Sealed Shell

    Benefits

  • Glass-sealed connectors built to protect against changes in atmospheric pressure and exposure to humidity, grime and chemicals
  • Ideal for aerospace engine control, hydraulic and caustic environments where harsh conditions exist
  • Withstands low-to-high pressures and altitudes seen in defense and aerospace applications
  • Rugged protection of EMI circuits
  • Available EMI-filtered or unfiltered
  • Aluminum Alloy Shell

    Benefits

  • High-grade aluminum
  • Durable but lightweight for high performance
  • Environmentally sealed for harsh environment applications
  • Designed to withstand high vibrations and temperatures
  • MIL-DTL-38999
  • Cadmium and nickel plating available
  • Custom designs available
  • Stainless Steel Shell

    Benefits

  • Built to operate in highly corrosive and damp environments
  • Premium grade stainless steel
  • Superior strength of stainless steel offers highest level of durability
  • Designed to seal electrical connections against elements, including water, oil, chemicals, dust and dirt
  • Custom designs available
  • Filtered Audio Connectors

    Benefits

  • Easy retrofit or upgrade without concern for space availability
  • Standardized design for most contact arrangements minimizes tooling required (often none)
  • Reduced procurement costs and small order quantities or prototypes
  • PC tail or solder cup terminations
