The snap-on connector family MMPX is the most ideal coaxial-to-PCB system solution for operating frequencies up to 67 GHz. The comprehensive product range consists of cable connectors and assemblies, PCB connectors and adaptors to open standards.
MMPX connectors feature excellent electrical performance at smallest mechanical dimensions. The broadband characteristics, the small size and the outstanding performance permit new solutions for applications in numerous markets such as high speed digital testing and radio frequency testing (60 GHz WPAN), industrial, mobile communication, space and defense.
Benefits of MMPX Series
Future Proof Design
Thanks to the broadband characteristics, the excellent return loss and the true 67 GHz coaxial-to-PCB transition, MMPX helps in developing future proof RF systems.
Quick and Reliable Mating
The MMPX snap-on mechanism is completely decoupled from the electrical path and therefore specifically optimised for quick and reliable mating.
Space Saving
The minimal pitch on boards of 5.08 mm (0.2 inch) saves expensive board material.
One Connector for Several Applications
The unique electrical and mechanical performance as well as the compact form makes MMPX ideal for a variety of applications.
MMPX Adapter
HUBER+SUHNER is manufacturing a wide range of adaptors in various configurations like within series or between series, straight or angled designs and some with panel mount features. Precision adapter assortment focuses on performance for accurate RF measurements.

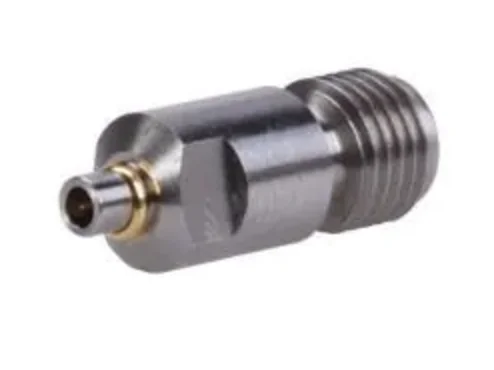

Part Number | Description | Availability | 84071648 | Adapter MMPX plug (m) – SK (2.92mm) jack (f) | Order / Learn More |
|---|---|---|
84071696 | Adapter SK (2.92mm) plug (m) – MMPX jack (f) | Order / Learn More |
MMPX Cable Assemblies
Part Number | Cable Assemblies (Individual) | Availability | 85009464 | MF86 cable, MMPX Male to SK (2.92mm) Male, L 2ft | Order / Learn More |
|---|---|---|
85119609 | MinibendL cable, MMPX male to SK (2.92mm) female, L 4″, phase matched to +/-1ps | Order / Learn More |
85108590 | SF102E cable, MMPX Male to MMPX Male, L 1ft, phased matched +/-1ps | Order / Learn More |
85146351 | SF102E cable, MMPX Male to MMPX Male, L 2ft, phased matched +/-1ps | Order / Learn More |
85176556 | MF86HE cable, MMPX Male R/A to 2.92mm Female, L 6in, phase matched +/-1ps | Order / Learn More |
85176557 | MF86HE cable, MMPX Male R/A to 2.92mm Female, L 4in, phased matched +/-1ps | Order / Learn More |
Cable Assemblies (Matched Pairs) | ||
85175182 | SF102E cable, MMPX Male to 2.4mm Male, L 3ft, phased matched +/-1ps – SET/PAIR OF CABLES | Order / Learn More |
85152826 | SF102E cable, MMPX Male to 2.92mm Male, L 3ft, phased matched +/-1ps – SET/PAIR OF CABLES | Order / Learn More |
MMPX Connectors
MMPX is the most ideal coaxial-to-PCB system solution for operating frequencies up to 67 GHz. The comprehensive product range consits of cable connectors and assemblies, PCB connectors and adaptors to open standards.
Part Number | Description | Availability | 84089228 | Straight male MMPX connector for Multiflex_86_HE cables | Order Now / Learn More |
|---|---|---|
84096711 | Straight PCB jack (female) connector, full surface mount (SMD) | Order Now / Learn More |
84009138 | Straight PCB jack (female) edge mount connector, full surface mount (SMD) | Order Now / Learn More |
84099981 | Straight PCB jack (female) connector, semi surface mount (semi-SMD), long print legs | Order Now / Learn More |
84093961 | Straight PCB jack (female) connector, semi surface mount (semi-SMD), short print legs | Order Now / Learn More |
MMPX Termintation Kit
Precision Termination, Low Power
Part Number | Description | Availability | 85174413 | MMPX Termination Kit | Order / Learn More |
|---|---|---|
85068116 | MMPX Termination | Order / Learn More |
