SLM Circulators is a leading provider of advanced RF circulators and isolators, delivering superior performance for wireless infrastructure, RF energy systems, and avionics/military applications. With a commitment to innovation and precision engineering, the company offers solutions that adhere to the highest industry standards, ensuring reliability and excellence in every deployment.
SMT Circulators from SLM
SLM Circulators are engineered using advanced electromagnetic simulation and optimization techniques, offering custom designs from 100 MHz to 18 GHz, supported by thermal and mechanical stress analysis, high-power handling optimization, miniaturization with surface-mount options, and automated RF testing for guaranteed performance and reliability.

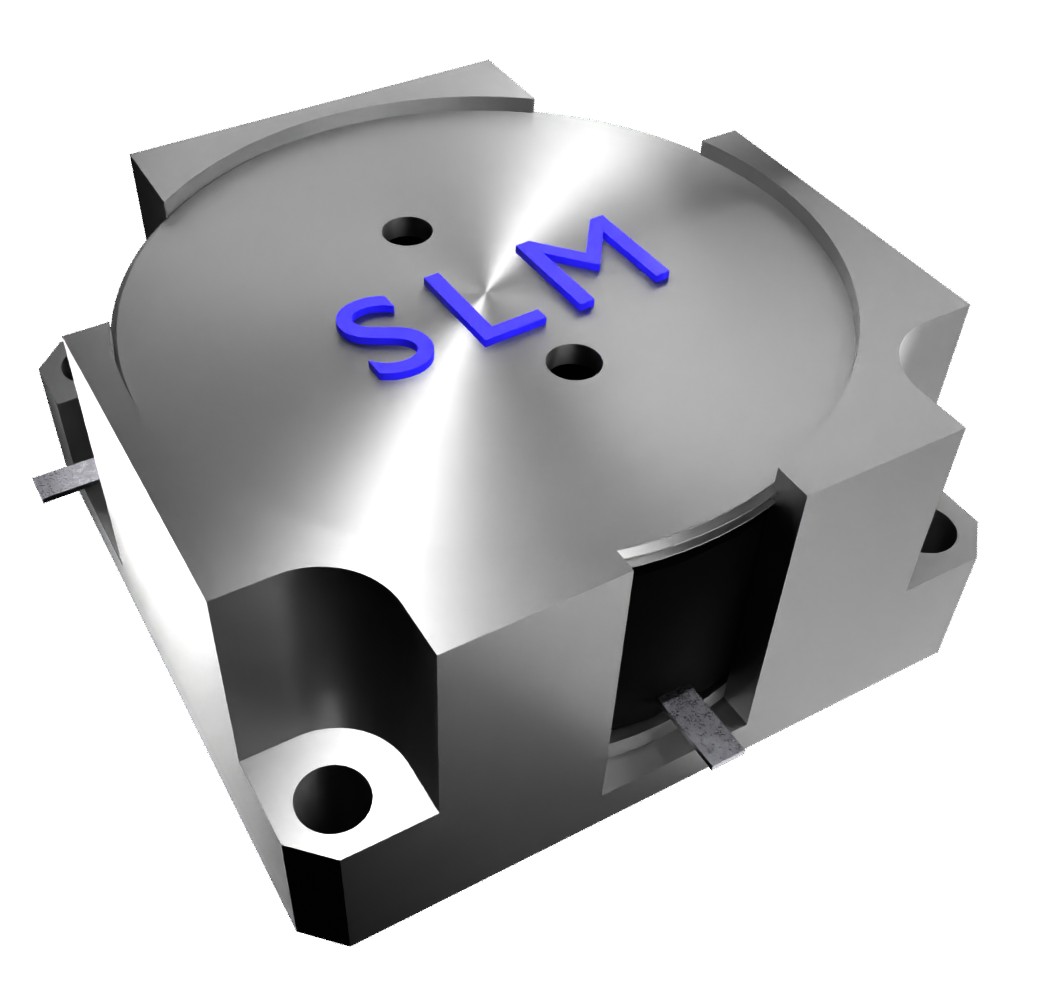

BRFE00364
902MHz to 928MHz
- IL 0.15dB max, RL 23dB min
- 23dB min Isolation
- 1000W CW input power for RF Energy
BRFE00351
2496MHz to 2690MHz
- 7mm SMT circulator
- ow IL 20dB, and Isolation >20dB
- Temp range -40°C to 110°C, ideal for Wireless Infrastructure

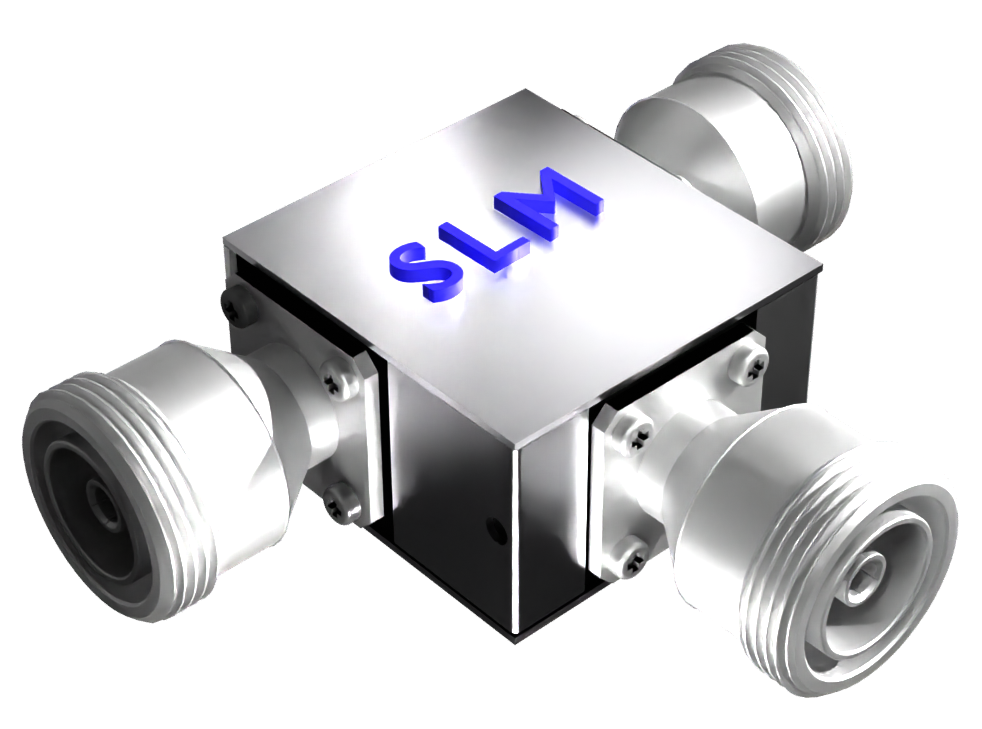

BRFE00367
2400-2500 MHz
- 7-16DIN connectors
- IL 23dB
- 2000W CW input power handling for RF Energy
BRFE00497
945MHz to 960MHz
- 10mm SMT Circulator
-
IL 20dB
>20dB Isolation - Wireless Infrastructure
BRFE00368
1030MHz – 1090MHz
- 32mm drop-in package
- IL23dB
- 3000W Peak Power handling for Avionics
BRFE00401
5700MHz to 6650MHz
- 15mm SMT Circulator
- IL 0.45dB max with RL and Isolation 18dB min
- 200W CW power handling for RF Energy
