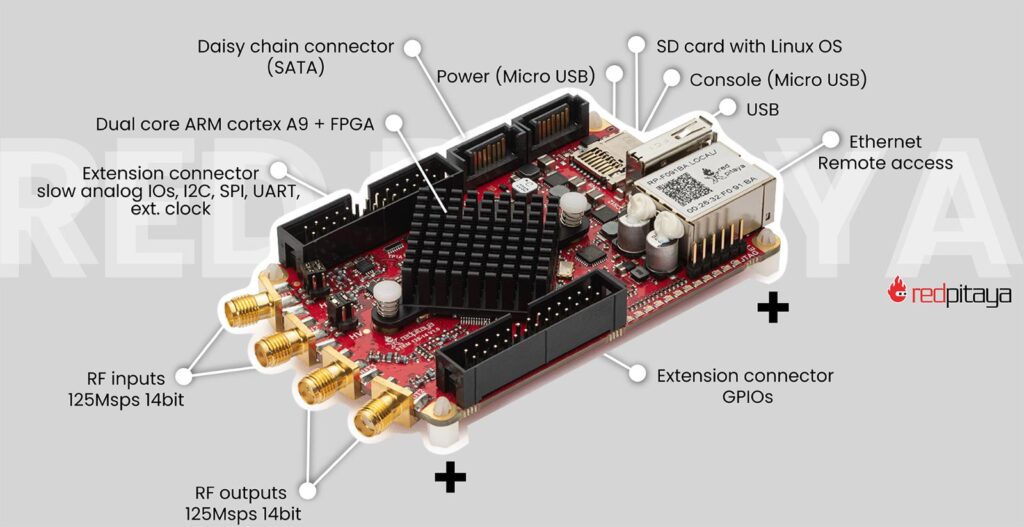

STEMlab 125-14 is Red Pitaya’s most versatile and popular product—used for T&M, industry, research and space applications, as well as by hobbyists and ham radio operators. It has two 125 Msps 14-bit inputs and two 14-bit outputs, Xilinx Zynq®-7010 FPGA, and offers remote access and an online app accessible through Ethernet or Wi-Fi.

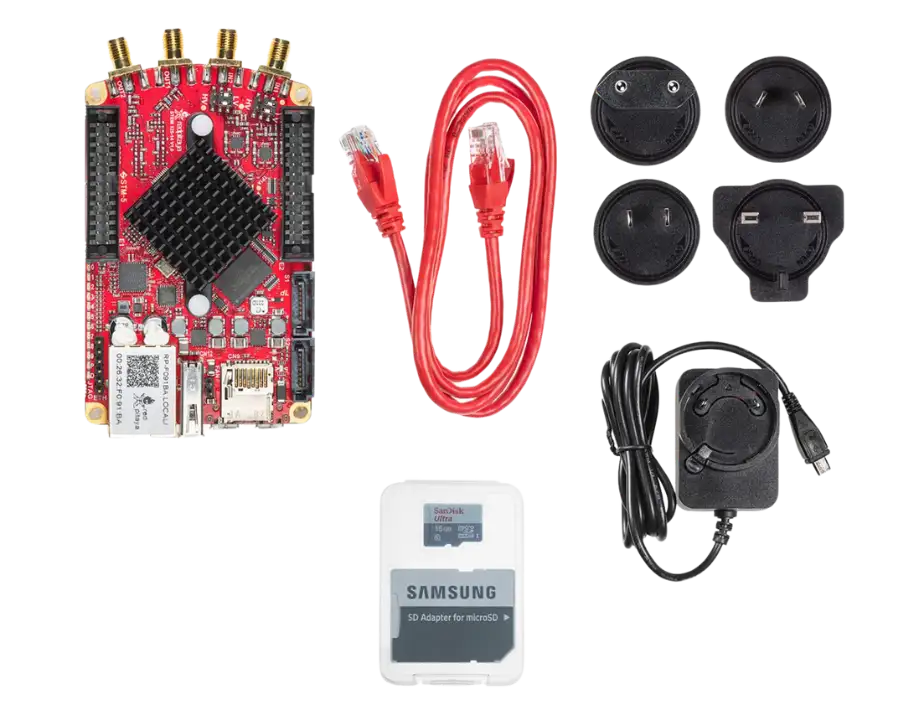

STEMlab 125-14 from Red Pitaya
Key Benefits
- Credit-card sized RF signal acquisition and generation platform
- Ethernet connectivity
- Xilinx SoC (CPU & FPGA)
- Two fast analog inputs and two outputs
- Possibility of integration into own system/product
- Open software source code available
- Works with Linux or Windows PC
- Can be used as an oscilloscope & signal generator, spectrum, Bode analyzer, logic analyzer, LCR meter*, streaming, SDR, or vector network analyzer*
- Can be controlled remotely using LabVIEW, MATLAB, Python, or Scilab
- Can be re-programmed to meet custom needs
Supported by an app marketplace with several free apps available
Applications
- Automated testing
- Portable test and measurement tool
- Multi-channel data acquisition
- Lock-in amplifiers
- OEM DAQ device
- Radars
- Quantum computing experiments
- Space and military RF applications
- Skimmer server
- Reverse beacon network (RBN)
