SUCOFLEX® 500 Assemblies

From HUBER+SUHNER
SUCOFLEX® 500 Cable Assemblies

SUCOFLEX® 500 Cable Assemblies

When it comes to test and measurement, SUCOFLEX 500 assemblies guarantee the highest level of satisfaction.

  • Torque, crush and kink resistant
  • Precise and repeatable measurements
  • Excellent phase match and amplitude stability
  • Long service life
  • Reduce total cost of test with durable, reliable performance
  • Increased test and measurement efficiency saving costs due to reduced calibration intervals
Huber-Suhner Logo

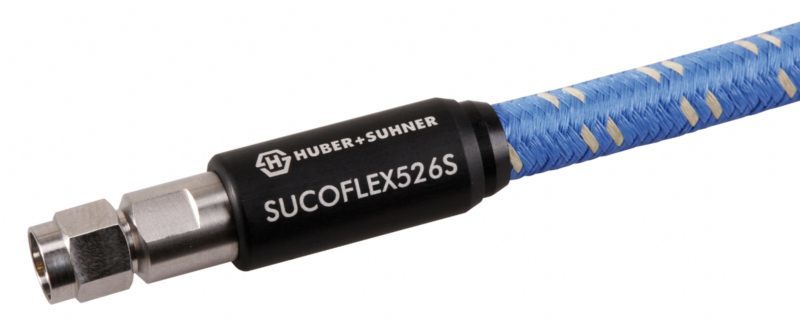

SUCOFLEX 526S / 526V  (26.5 GHz)

The SUCOFLEX 526S is a flexible, low loss cable assembly that operates up to 26.5 GHz. This assembly has excellent phase and amplitude stability vs. flexure and also has an excellent return loss and insertion loss. It is ideal for applications such as test rack systems, and bench-top, field or RF production tests with high throughput rates.

The SUCOFLEX 526V is a VNA microwave cable assembly with excellent Phase stability vs. Flexure of 0.15°/GHz and Phase stability vs. Temperature (15°C to 30°C) of 50 ppm. It shows no “PTFE phase knee” at +19°C as on conventional VNA test cable assemblies which cause phase variations and unstable measurements in critical laboratory conditions. This VNA test cable can be used up to frequencies of up to 26.5 GHz and has an insertion loss of 2.5 dB when the cable length is 25 inches. This cable assembly is available in multiple lengths and has 3.5 mm connectors on either side.

SUCOFLEX 550S (50 GHz)

HUBER+SUHNER SUCOFLEX® 550S Microwave Cable Assemblies are designed to offer more than 100,000 flex cycles and high electrical performance with an enhanced mechanical design for durability. These cable assemblies utilize the patented rotary swaging technology for flexibility of stranded inner conductor while maintaining the electrical properties of a solid inner conductor. The SUCOFLEX 550S feature high performance of up to 50GHz, excellent insertion loss, and phase and amplitude stability with flexure and movement. These cable assemblies offer an excellent price-performance ratio and precise and repeatable measurements. Typical applications include bench-top testing, RF production testing, scalar analyzers, and High-Speed Digital Testing (HSDT).

SUCOFLEX 570S (70 GHz)

HUBER+SUHNER SUCOFLEX® 570S Microwave Cable Assemblies are 70GHz assemblies offering a long lifetime of more than 20,000 flex cycles. HUBER+SUHNER SUCOFLEX 570S also provides excellent insertion loss (6.48dB typical) as well as outstanding phase stability (±3°) and amplitude stability (±0.05dB) with flexure and movement. These 50Ω impedance cable assemblies operate over a -55°C to +165°C temperature range and are ideal for use in a variety of applications, including benchtop testing, RF production testing, automated test equipment, and more.

Cable Assembly Family Extends Laboratory-Grade Measurements to 70 GHz

HUBER+SUHNER AG Herisau, Switzerland

Our increasingly high-tech world relies on the capabilities of new generations of infrastructure, as society adopts 5G, autonomous cars, the IoT and Industry 4.0. To ensure these complex systems work as designed, the underlying components—antennas, semiconductor chipsets, passive components and high speed interfaces—require rigorous testing.
