Coaxial Switches & Relays

RF Coaxial Switches are electromechanical coaxial devices with multiple ports: SPDT (Single-Pole, Double-Throw), DPDT, DP3T, or SPnT (Single-Pole, Multi-Throw). Options include guaranteed operation up to 10 million cycles, frequency to 67 GHz, low PIM, and TVAC/Space options. RF & Microwave Relays are typically surface mountable or through-hole on a PCB, and can be ultraminiature, hermetically sealed, etc. Coaxial Switches and Relays provide precise and fast switching capabilities for Automated Test Equipment, high-performance military and aviation vehicles, to digital throughput requirements of complex digital signal processing and data acquisition systems. Richardson RFPD supports all types of RF Coaxial Switches & Relays from industry leading manufacturers.

Radiall

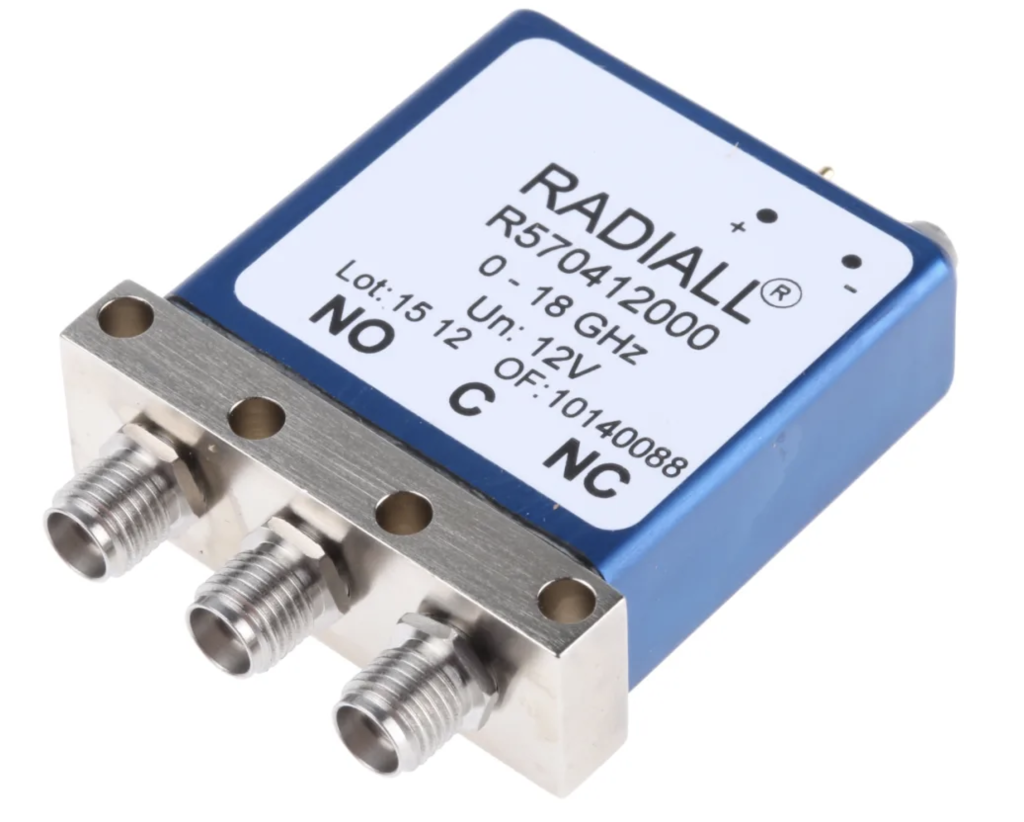

This SPDT Ramses SMA 18 GHz failsafe 12 Vdc terminal pin offers 10 million cycles life and a switching time of < 10 ms.

  • Isolation: 60 dB @ 12.4-18 GHz
  • Max Insertion loss: 0.35 dB
  • VSWR: 1.40:1
  • Impedance: 50 Ohms

Radiall

This SP8T terminated Ramses SMA 18 GHz latching 28 Vdc D-sub connector offers 2 million cycles per position and a switching time of <15 ms.

  • Isolation: 60 dB
  • Insertion loss: 0.6 dB
  • VSWR: 1.6:1
  • Impedance: 50 Ohms

Teledyne Relays

This broadband, SPDT, electromechanical coaxial switch is offered with a failsafe actuator and is compatible with common mounting hole patterns.

  • Frequency: 12 GHz
  • Isolation: 65 dB
  • Insertion loss: 0.2 dB
  • Connectorized type N connectors

Teledyne Relays

This broadband, SPDT, electromechanical coaxial switch is designed to switch a microwave signal from a common input to either of two outputs.

  • Characteristic impedance: 50 Ohms
  • SMA female
  • DC-22 GHz
  • 12 VDC

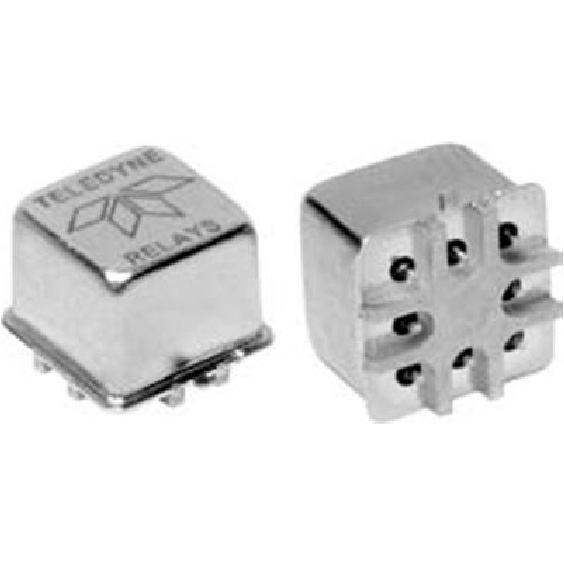

Teledyne Relays

The GRF172 surface-mount Centigrid® relay is an ultraminiature, hermetically sealed, armature relay, versatile for a range of 2.5 GHz RF applications.

  • Low profile height (0.330″”)
  • 0.100″” grid spaced terminals
  • Unique ground shield on each lead
  • Improved high-frequency performance

Teledyne Relays

This DPDT relay with internal diode for coil transient suppression is part of the Series S114 surface mount Centigrid® ultraminiature relays.

  • Low profile height: .360″”
  • .100″” lead spacing
  • Ideal for space constraints
  • Overall high reliability

Teledyne Relays

This DPDT relay with internal diode for coil transient suppression features a low profile for applications where high packaging density is important.

  • All welded construction
  • Unique uni-frame design
  • Resistant to shock and vibration
  • Overall high reliability
