Connectors

RF Coaxial Connectors include Board mount, Cable mount, Panel mount, and multi-Coax options. Connectors come in a wide variety of styles and series (e.g., SMA, N, MCX, etc.) covering a frequency range to 110 GHz. Cable mount connectors are terminated to the end of rigid, semi-rigid, flexible, and semi-flexible RF coaxial cables. Panel mount connectors are connected mechanically to a housing, panel, or enclosure. Multi-Coax Test Header Connectors simultaneously connect multiple RF signals, often used in high-speed automated testing environments and/or high-density printed circuit boards. Richardson RFPD supports all types of RF Coaxial Connectors from industry leading manufacturers.

Carlisle Interconnect Technologies

This 2.4 mm edge launch, solderless connector is part of Carlisle’s extensive range of precision board-mount connectors.

  • Industrial
  • Military-Defense
  • Space
  • Test & Measurement

Carlisle Interconnect Technologies

The SMP “push-on” connector series facilitates dense packaging and includes this SMP male straight bulkhead panel mount to semi-rigid cable.

  • Frequency range: DC-40 GHz
  • 50 Ω impedance
  • Blindmateable configuration
  • Industry standard per MIL-STD-348

Amphenol RF

This surface mount, straight PCB jack is part of the AMC ultraminiature series featuring low profile PCB connectors with small board footprints.

  • Operate at 50 ohm impedance
  • Performance from DC to 6 GHz
  • Ideal for space constraints
  • Easy snap-on/snap-off mating

HUBER+SUHNER

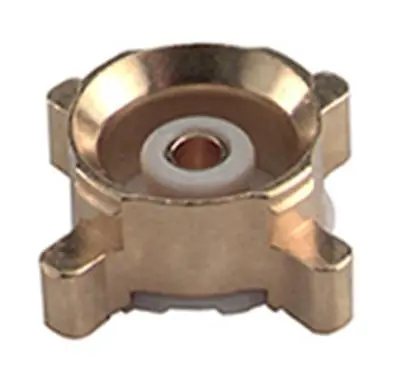

This straight PCB jack (F) is part of the MMBX connectors series, developed specifically for board-to-board and board-to-module RF interconnections.

  • Operation frequency up to 12.4 GHz
  • Wide range of board, cable connectors
  • Very good return loss values
  • Smallest board-to-board distance

Cinch Connectivity Solutions

RF coaxial connector, SMA straight jack receptacle with gold plated brass body and contact, printed circuit board style, solder termination type.

  • 50 Ω Impedance
  • 18 GHz maximum frequency
  • 5000 MΩ min. insulation resistance
  • Versatile for defense, 5G, more

HUBER+SUHNER

The SMP “push-on” connector series facilitates dense packaging within RF/Microwave systems and includes this male right-angle PCB mount connector.

  • Frequency range: DC-40 GHz
  • 50 Ω impedance
  • Blindmateable configuration
  • Industry standard per MIL-STD-348
