Innoscience - ISG3201

100 V Half-Bridge SolidGaN Integrating Gate Driver
Compact, High-Performance SolidGaN Integrated Half-Bridge Solution with Driver

Compact, High-Performance SolidGaN Integrated Half-Bridge Solution with Driver

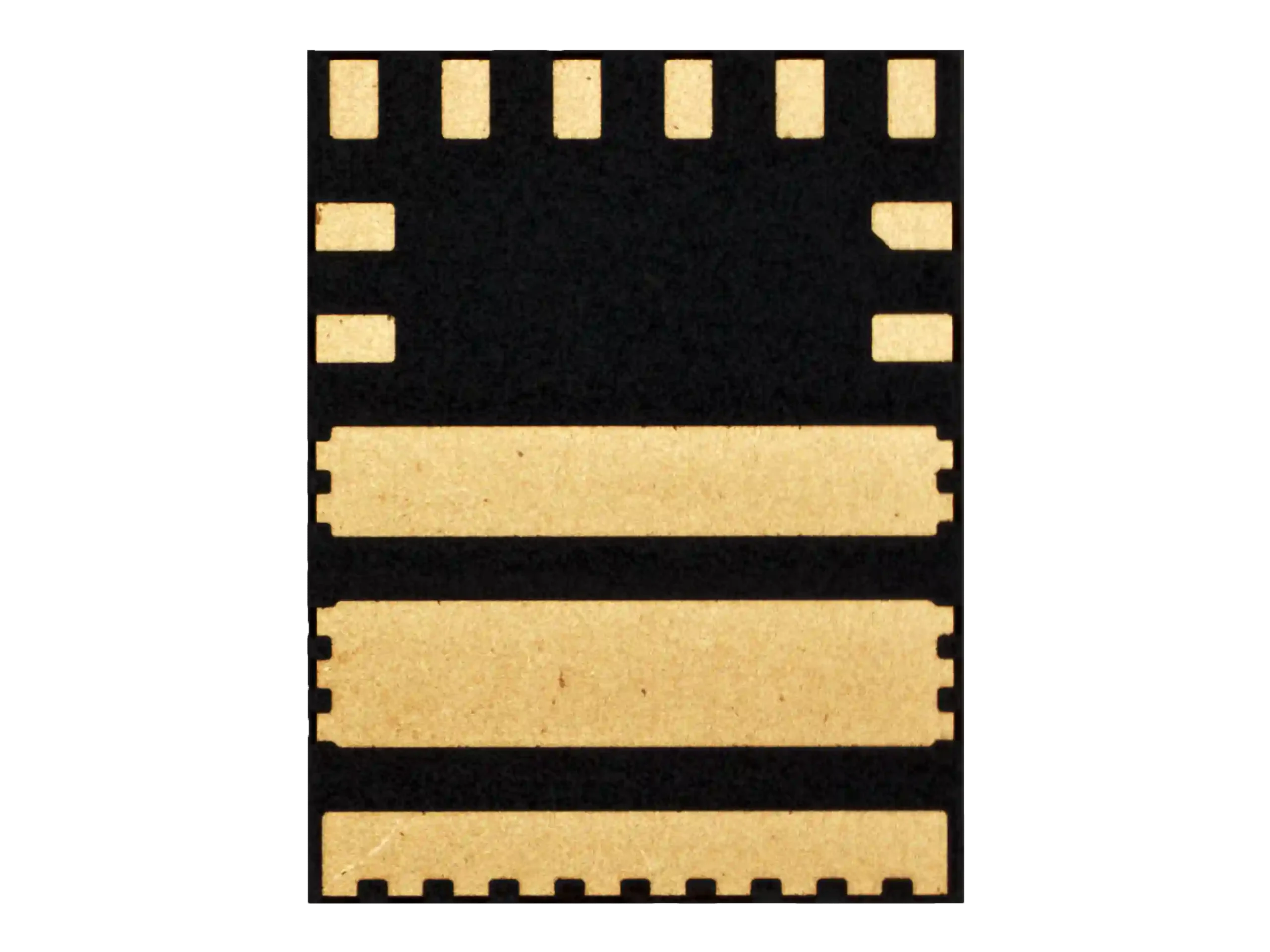

Innoscience’s ISG3201 is a complete half-bridge circuit that includes two 100 V, 3.2 mΩ InnoGaN HEMTs and the required driver circuitry in an LGA package measuring just 5×6.5×1.1mm.

The ISG3201  has a 34 A continuous current capability, zero reverse recovery charge, and ultra-low on resistance. Thanks to the high level of integration, gate loop and power loop parasitics are kept below 1 nH. As a result, voltage spikes on switching nodes are minimized. The turn-on speed of the half-bridge GaN HEMTs can be adjusted using a single resistor.

ISG3201  - Key Features

VDS,max
100 V
RDS(on),max
3.2 mΩ + 3.2 mΩ
QG,typ
9.2 nC + 9.2 nC
ID,Pulsed
230 A
