Wolfspeed WolfPACK™ Silicon Carbide Power Modules

Wolfspeed WolfPACK™ modules are a great choice for designers who want to increase efficiency and power density in a compact, industry-standard footprint.
Wolfspeed WolfPACK™ Silicon Carbide Power Modules

Wolfspeed WolfPACK™ Silicon Carbide Power Modules

Wolfspeed has launched a baseplate-less module family to meet the requirements of medium power applications, providing solutions across the power electronics continuum. Wolfspeed WolfPACK™ modules are a great choice for designers who want to increase efficiency and power density in a compact, industry-standard footprint. The family of modules provide an excellent solution for fast design implementation, scalability and lower assembly overhead.

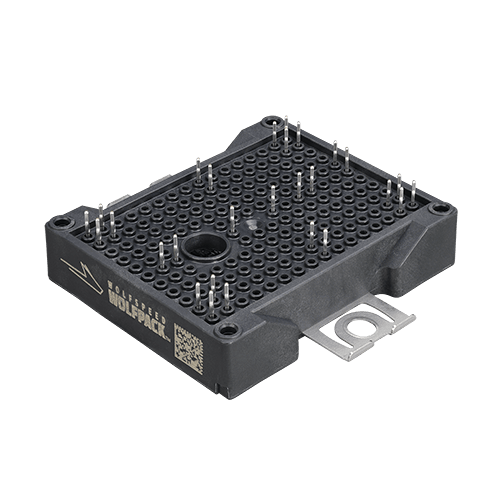

WolfPACK™ Modules from Wolfspeed

Key Benefits

  • Maximum power density
  • Ease of layout and assembly
  • System scalability and reliability
  • Simpler cooling systems and smaller systems
  • Key Features

  • Leading silicon carbide MOSFET technology in an industry standard form factor
  • Highest current rated topologies commercially available
  • Built in NTC
  • Press fit connections
  • Wolfspeed WolfPACK™ modules are currently available in half-bridge and six-pack configurations.
    Part Number
    Package (V)
    Configuration
    Blocking Voltage
    Current Rating
    RDS(on) @ 25°C
    Generation
    Maximum Junction Temperature
    Module Size
    Recommended for New Design?
    CAB011A12GM3
    GM
    Half-Bridge
    1200V
    141A
    11mΩ
    Gen 3 MOS
    150 °C
    62.8 mm x 56.7 mm
    Yes
    CAB011A12GM3T
    GM
    Half-Bridge
    1200V
    141A
    11mΩ
    Gen 3 MOS
    150 °C
    62.8 mm x 56.7 mm
    Yes
    CAB006M12GM3
    GM3
    Half-Bridge
    1200 V
    200 A
    6 mΩ
    Gen 3 MOS
    150 °C
    62.8 x 56.7 mm
    Yes
    CAB006A12GM3
    GM3
    Half-Bridge (AIN substrate)
    1200 V
    200 A
    6 mΩ
    Gen 3 MOS
    150 °C
    62.8 x 56.7 mm
    Yes
    CAB006M12GM3T
    GM3
    Half-Bridge
    1200 V
    200 A
    6 mΩ
    Gen 3 MOS
    150 °C
    62.8 x 56.7 mm
    Yes
    CAB006A12GM3T
    GM3
    Half Bridge (AlN substrate)
    1200 V
    200 A
    6 mΩ
    Gen 3 MOS
    150 °C
    62.8 x 56.7 mm
    Yes
    CAB008A12GM3
    GM3
    Half-Bridge (AIN substrate)
    1200 V
    194 A
    8 mΩ
    Gen 3 MOS
    150 °C
    62.8 x 56.7 mm
    Yes
    CAB008M12GM3
    GM3
    Half-Bridge
    1200 V
    146 A
    8 mΩ
    Gen 3 MOS
    150 °C
    62.8 x 56.7 mm
    Yes
    CAB008M12GM3T
    GM3
    Half-Bridge
    1200 V
    160 A
    8 mΩ
    Gen 3 MOS
    150 °C
    62.8 x 56.7 mm
    Yes
    CAB008A12GM3T
    GM3
    Half-Bridge
    1200 V
    181 A
    8 mΩ
    Gen 3 MOS
    150 °C
    62.8 x 56.7 mm
    Yes
    CAB011M12FM3
    FM3
    Half-Bridge
    1200 V
    105 A
    11 mΩ
    Gen 3 MOS
    150 °C
    62.8 x 33.8 mm
    Yes
    CAB011M12FM3T
    FM3
    Half-Bridge
    1200 V
    117 A
    11 mΩ
    Gen 3 MOS
    150 °C
    62.8 mm x 33.8 mm
    Yes
    CAB016M12FM3
    FM3
    Half-Bridge
    1200 V
    78 A
    16 mΩ
    Gen 3 MOS
    150 °C
    62.8 x 33.8 mm
    Yes
    CAB016M12FM3T
    FM3
    Half-Bridge
    1200 V
    84 A
    16 mΩ
    Gen 3 MOS
    150 °C
    62.8 mm x 33.8 mm
    Yes
    CCB021M12FM3
    FM3
    Six-pack (three-phase)
    1200 V
    51 A
    21 mΩ
    Gen 3 MOS
    150 °C
    62.8 x 33.8 mm
    Yes
    CBB021M12FM3
    FM3
    Full-Bridge
    1200 V
    50 A
    21 mΩ
    Gen 3 MOS
    150 °C
    62.8 mm x 33.8 mm
    Yes
    CCB021M12FM3T
    FM3
    Six-pack (three-phase)
    1200 V
    30 A
    21 mΩ
    Gen 3
    150 °C
    62.8 mm x 33.8 mm
    Yes
    CBB021M12FM3T
    FM3
    Full-Bridge
    1200 V
    48 A
    21 mΩ
    Gen 3 MOS
    150 °C
    62.8 mm x 33.8 mm
    Yes
    CCB032M12FM3
    FM3
    Six-pack (three-phase)
    1200 V
    40 A
    32 mΩ
    Gen 3 MOS
    150 °C
    62.8 x 33.8 mm
    Yes
    CBB032M12FM3
    FM3
    Full-Bridge
    1200 V
    39 A
    32 mΩ
    Gen 3 MOS
    150 °C
    62.8 mm x 33.8 mm
    Yes
    CCB032M12FM3T
    FM3
    Six-pack (three-phase)
    1200 V
    30 A
    32 mΩ
    Gen 3 MOS
    150 °C
    62.8 mm x 33.8 mm
    Yes
    CBB032M12FM3T
    FM3
    Full-Bridge
    1200 V
    37 A
    32 mΩ
    Gen 3 MOS
    150 °C
    62.8 mm x 33.8 mm
    Yes

    Wolfspeed Evaluation Tools

    Dynamic characterization tool that can be used to evaluate and optimize switching performance of Wolfspeed’s WolfPACK SiC half-bridge power modules – CAB011M12FM3 and CAB016M12FM3.

    The EVAL-ADuM4146WHB1Z is a half-bridge gate driver board that allows simple evaluation of the performance of the ADuM4146 when driving advanced Wolfspeed third generation C3M™ SiC MOSFETs and power modules. Use it in conjunction with Wolfspeed’s clamped inductive load test boards or half-bridge evaluation boards and differential transceiver boards.​

    Dynamic characterization tool that can be used to evaluate and optimize switching performance of Wolfspeed’s WolfPACK SiC half-bridge power modules – CAB011M12FM3 and CAB016M12FM3.

    Dynamic characterization tool that can be used to evaluate and optimize switching performance of Wolfspeed’s WolfPACK SiC six-pack (three phase) power modules – CCB021M12FM3 and CCB032M12FM3.
    Dynamic characterization tool that can be used to evaluate and optimize switching performance of Wolfspeed’s WolfPACK™ SiC half-bridge power modules in the GM3 module footprint, including all part numbers with a ‘GM’ in the last three digits of the part number and an ‘A’ in the second digit (example: CAB006M12GM3)
