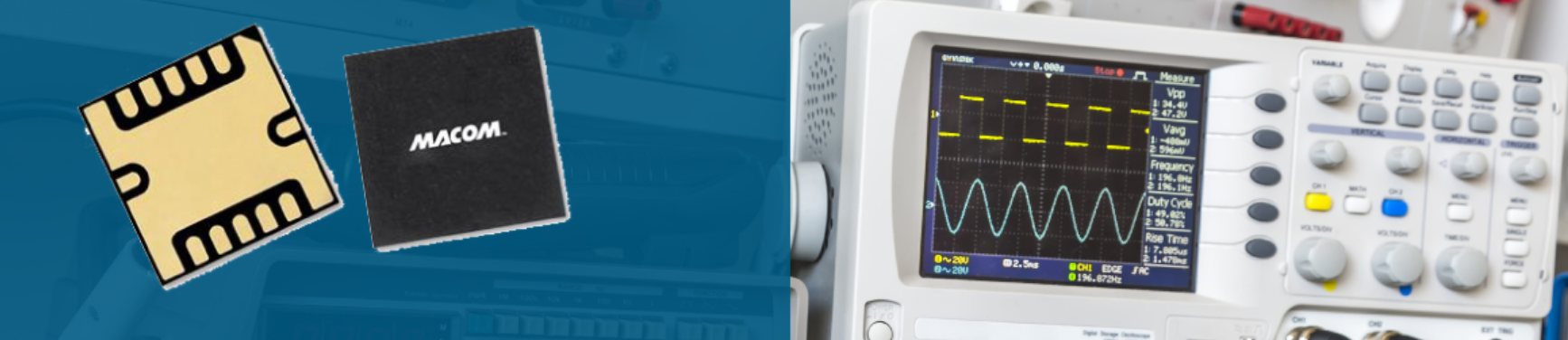

MACOM - MAAM-011238

100 kHz-50 GHz Wideband Distributed Amplifier
100 kHz-50 GHz Wideband Distributed Amplifier from MACOM

100 kHz-50 GHz Wideband Distributed Amplifier from MACOM

The MAAM-011238 is an easy-to-use, wideband amplifier that operates from 100 kHz to 50 GHz. The amplifier provides 14 dB gain, 5 dB noise figure and 18.5 dBm of P3dB output power @ 30 GHz. It is matched to 50 Ω with typical return loss of 12 dB. The amplifier requires only positive bias voltages and would typically be operated at 6 V and 135 mA. MAAM-011238 is suitable for a wide range of applications in instrumentation and communication systems.

  • Gain: 14 dB @ 6 V, 30 GHz
  • P1dB: 17 dBm @ 6 V, 30 GHz
  • P3dB: 18.5 dBm @ 6 V, 30 GHz
  • Integrated Power Detector
  • Gain control with only positive bias voltages
  • 50 Ω Input and Output Match
  • Bias Voltage: VDD = 4 – 6 V
  • Bias Current: IDSQ = 125 – 150 mA
  • 5 mm SMT Package
