MTB & MXB X-Band Filter Family for Satcom and Radar

Ceramic Monoblock Filters for X-Band Applications.
Bandpass Filters for X-Band

Bandpass Filters for X-Band

CTS ceramic frequency-signal Bandpass Filter (BPFs) are especially well-suited for use in indoor and outdoor TDD Small Cells from Pico Cells to Metro Cells as well as Distributed Antenna Systems (DAS), Active Antenna Arrays / System (AAS), Remote Radio Heads, and other wireless infrastructure systems as well as Military, Public Safety, and Aerospace solutions.
  • Ceramic dielectric technology offers excellent combination of small footprint, high rejection, low loss and moderate power handling
  • Diverse applications include radar, communications, sensors, IF filters, test and measurement
  • MTB/MXB family share a single, universal PCB footprint layout
  • Ideal for high-density arrays and filter banks
  • Wide temperature ranges with tight stability and great long-term reliability
  • Standard, off-the-shelf products
  • Custom frequencies or rejection with 3-6 poles and up to two shunts
  • Can be made in USA and with ITAR compliance

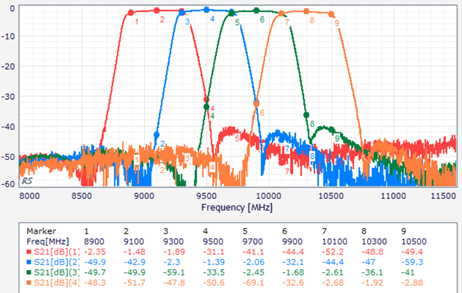

MTB / MXB Product  Family Overview:

MTB & MXB X-Band Filter Family  for Satcom & Radar

CTS Logo
Part Number
Passband (GHz)
Fc (GHz)
Bandwidth (GHz)
% BW
IL (dB)
Rejection (Typ.)
MTB0638A*
6.3-6.45
6.38
0.15
2%
<1.4
40 dB at 0.3 GHz away
MTB0720A*
6.5-7.9
7.2
1.4
20%
<1.4
30 dB at 1.2 GHz away
MXB0750A*
#image_title
6.5-8.5
7.5
2
27%
<1.2
40 dB at 1.0 GHz away
MXB0761A*
#image_title
6.725-8.5
7.6125
1.775
23%
<1.2
30 dB at 1.0 GHz away
MTB0910A
8.9-9.3
9.1
0.4
4%
<2.5
40 dB at 0.3 GHz away
MXB0925A*
#image_title
8.0-10.5
9.25
2.5
27%
<1.5
40 dB at 1.0 GHz away
MTB0950A
9.3-9.7
9.5
0.4
4%
<2.5
40 dB at 0.3 GHz away
MTB0990A
9.7-10.1
9.9
0.4
4%
<2.5
40 dB at 0.3 GHz away
MXB1000A*
#image_title
9.75-10.25
10
0.5
5%
<1.8
40 dB at 0.5 GHz away
MXB1000B*
#image_title
9.875-10.125
10
0.25
2.5%
<2.5
40 dB at 0.25 GHz away
MTB1025A*
10.0-10.5
10.25
0.5
5%
<2.5
40 dB at 0.3 GHz away
MTB1030A
10.1-10.5
10.3
0.4
4%
<2.5
40 dB at 0.3 GHz away
MTB1060B
10.2-11.0
10.6
0.8
4%
<1.7
30 dB at 1.0 GHz away
MTB1080A*
10.4-11.2
10.8
0.8
4%
<1.7
30 dB at 1.0 GHz away
MTB1160A*
11.2-12.0
11.6
0.8
4%
<1.8
30 dB at 1.0 GHz away
MXB1172A
#image_title
10.7-12.75
11.72
2.05
17%
<1.2
40 dB at 4.0 GHz away

* Product concepts not yet developed, but feasible. Contact Richardson RFPD for further information.
