Radio Development Tools Powered by Analog Devices Technology

Enabling Rapid Prototyping, Simulation and Design for Faster Time-to-Market.
Evaluation Tools & Design Accelerators

Evaluation Tools & Design Accelerators

RadioVerse SDR transceiver technologies offer several Design Accelerators including prototyping platforms, full evaluation systems, software simulation tools, device drivers, and more. Pick the option that best suits your requirements and stage in the design cycle.

High Power RFFE Software Defined Radio (SDR) Developer's Kits

The high power RFFE developer’s kits are intended as design accelerators with the ability to optimize complete communication systems. Each kit contains multiple boards that combine FPGA and wideband transceiver with a high-power, high-efficiency RF front end. Also included are basic cables, documentation and embedded software to get you up and running.

Part Number
Manufacturer
Frequency (MHz)
Transceiver
FPGA
PA Architecture
Output Power (W@ Ant)
Configuration
Availability
ETX120
NewEdge Signal Solutions
1800-2700
AD9361
Artix-7
Envelope Tracking
7W (x2)
2×2 MIMO
Buy Now
ADI-DPD-DEVKIT
Richardson RFPD
758-803
AD9375
ZC706
Doherty
5W
1×1 SISO
Buy Now
RadioCarbon-11
Richardson RFPD
1350-2700
ADRV9002
XCU3EG
Balanced
1W
1×1 SISO
Buy Now
RadioCarbon-12
Richardson RFPD
1350-2700
ADRV9002
XCU3EG
Balanced
2W
1×1 SISO
Buy Now
RadioCarbon-13
Richardson RFPD
4400-5500
ADRV9002
XCU3EG
Balanced
2W
1×1 SISO
Buy Now
BP-3CG1E-9002KT
NextGen RF Designs
30-6000
ADRV9002
Zynq UltraScale+
XCZU3G-1SBVA484E
2X2 MIMO
Buy Now
VPROKIT-21-C
Vanteon
30-6000
ADRV9002
Zynq Z-7020
2X2 MIMO
Buy Now

RF Transceiver + FPGA System on Module (SoM)

RF Transceiver + FPGA System on Module (SoM) are a combination of ADI transceiver with an FPGA, designed to reduce engineering cost and time. SoMs remove the difficulty of designs using ADI’s integrated transceivers and FPGA by not only providing a very small formfactor platform to ease the hardware design but also include drivers, HDL code, APIs, and platforms for algorithm development, to ease the non-hardware part of the design. Please contact Richardson RFPD for documentation.

Part Number
Manufacturer
Frequency (MHz)
Transceiver
FPGA
Configuration
Availability
ADRV9009-ZU11EG
Analog Devices
75-6000
ADRV9009
Zynq UltraScale+ ZU11EG
4×4 MIMO
Buy Now
ADRV9361-Z7035
Analog Devices
70-6000
AD9361
Zynq Z-7035
2×2 MIMO
Buy Now
ADRV9364-Z7020
Analog Devices
70-6000
AD9364
Zynq Z-7020
1×1 SISO
Buy Now
ETX117
NextGen Signal Solutions
70-6000
AD9361
Artix-7
2×2 MIMO
Buy Now
BP-3CG1E-9002
NextGen RF Design
30-6000
ADRV9002
Xilinx XCU3EG
2T2R
Buy Now
VPRO-21-C
Vanteon
30-6000
ADRV9004
Xilinx Zynq Z-7020
2T2R
Buy Now

High Power RF Front End Design Accelerators

The RF Front End System Board is a single board that contains transmit and receive functionality and is intended to interface with wideband transceiver SoMs and evaluation boards that include DPD. Available separately or included in the High Power RFFE Developer’s kits as a complete solution. These system boards function as evaluation platform and/or reference designs. Please contact Richardson RFPD for information on how to license the design.

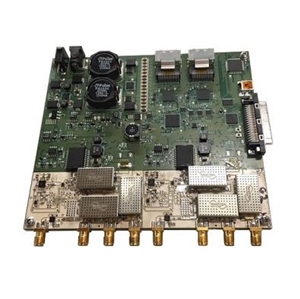

ETX108 - NewEdge Signal Solutions
Part Number
Manufacturer
Frequency (MHz)
Output Power (Avg)
Duplex Mode
Voltage
Configuration
Availability
DE705
Richardson RFPD
758-803
5W
FDD
28VDC
1×1 SISO
Buy Now
ETX108
NewEdge Signal Solutions
1800-2700
7W (x2)
TDD/FDD
19.5VDC
2×2 MIMO
Buy Now
RFPD-RC-4450-50
Richardson RFPD
4400-5000
2W
TDD/FDD
25-60V
1×1 SISO
Buy Now
RFPD-RC-1327-50
Richardson RFPD
1350-2700
2W
TDD/FDD
25-60V
1×1 SISO
Buy Now
RFPD-RC-1327-20
Richardson RFPD
1350-2700
1W
TDD/FDD
25-60V
1×1 SISO
Buy Now

Wideband RF Transceiver FMC Card Design Accelerators

Wideband RF transceiver FMC cards are ADI transceivers in an FMC form factor; designed to be flexible enough to fit on multiple FPGA platforms with the goal of reducing design cost and time. They include drivers, HDL code, APIs, JESD204 IP, and allow for software and algorithm development while the hardware designers are tweaking the other aspects of the design.
Part Number
Manufacturer
Frequency (MHz)
Transceiver
Configuration
Availability
AD-FMCOMMS2-EBZ
Analog Devices
2400-2500
AD9361
2×2
Buy Now
AD-FMCOMMS3-EBZ
Analog Devices
70-6000
AD9361
2×2
Buy Now
AD-FMCOMMS5-EBZ
Analog Devices
70-6000
AD9361
4×4
Buy Now
AD-FMCOMMS4-EBZ
Analog Devices
70-6000
AD9364
1×1
Buy Now
AD-FMCOMMS8-EBZ
Analog Devices
75-6000
ADRV9009
4×4
Buy Now

Wideband RF Transceiver Evaluation Boards

Wideband RF transceiver evaluation boards are intended to test and offer familiarity with RF transceiver ICs. These evaluation boards are based on a specific transceiver IC and are configured in either SISO or MIMO. This board is available separately, or it can be combined with FPGA SoC evaluation boards and high-power RF Front End Boards in our System Developer’s Kit.

ADI - Wideband RF Transceiver Eval Board
Part Number
Manufacturer
Frequency (MHz)
Transceiver
Configuration
Availability
ADRV9002NP/W1PC
Analog Devices
30-3000
ADRV9002
2×2
Buy Now
ADRV9002NP/W2PC
Analog Devices
3000-6000
ADRV9002
2×2
Buy Now
ADRV9008-1WPCB
Analog Devices
75-6000
ADRV9008-1
Dual Rx
Buy Now
ADRV9008-2WPCB
Analog Devices
75-6000
ADRV9008-2
Dual Tx
Buy Now
ADRV9009-W/PCBZ
Analog Devices
75-6000
ADRV9009
2×2
Buy Now
ADRV9026HB/PCBZ
Analog Devices
650-6000
ADRV9026
4×4
Buy Now
ADRV9026MB/PCBZ
Analog Devices
650-6000
ADRV9026
4×4
Buy Now
ADRV9371-W/PCBZ
Analog Devices
300-6000
AD9371
2×2
Buy Now
ADRV9371-N/PCBZ
Analog Devices
1800-2600
AD9371
2×2
Buy Now
ADRV9375-W/PCBZ
Analog Devices
300-6000
AD9375
2×2
Buy Now
ADRV9375-N/PCBZ
Analog Devices
1800-2600
AD9375
2×2
Buy Now

Programmable Logic SoC Evaluation Kit

The Programmable Logic SoC evaluation kit provides for the baseband processing of a communication system, including SDR. The SoC kit includes waveforms for signal generation within the SDR and includes firmware. This kit can be purchased separately or combined with transceiver evaluation boards. It is also included with the high power SDR Developer’s kit.

ADI - Programmable Logic SoC Eval Kit
Part Number
Manufacturer
FPGA
Serial Interface
Modular Interface
Availability
EVAL-TPG-ZYNQ3
Analog Devices
Zynq-7000
JESD204B
FMC
Buy Now
