MACOM - MAAP-011298
27-31.5 GHz 2.3W Power Amplifier for 5G & VSAT

MACOM 27-31.5 GHz 2.3W Power Amplifier for 5G & VSAT

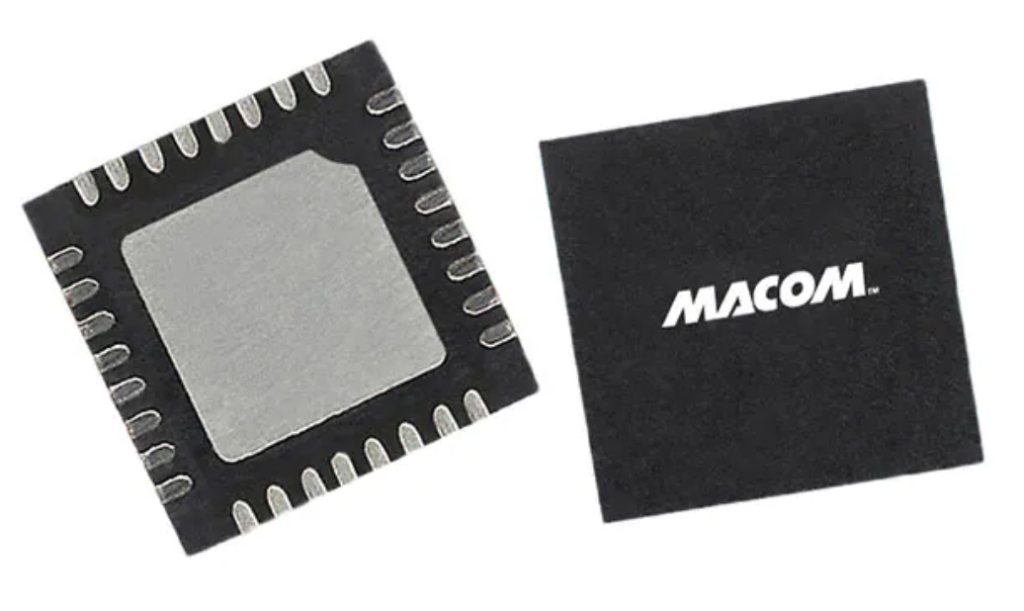

MACOM’s MAAP-011298 4-stage Ka-band PA provides 24.5 dB of linear gain, 2.3W saturated output power and 26% efficiency while biased at 6V. It is assembled in a lead-free 5mm 32-lead AQFN plastic package and can be used as a PA stage or as a driver stage.

  • High Gain: 24.5 dB
  • P1dB: 32.5 dBm
  • P3dB: 33.5 dBm
  • IM3 Level: -17.5 dBc @ POUT = 30 dBm/tone
  • Power Added Efficiency: 26% @ P3dB
  • Temperature Compensated Output Power Detector
  • RoHS* Compliant
  • Lead-Free 5 mm AQFN 32-lead Package
