Solutions for 5G Active Antennas and Small Cells

RapidRF smart LDMOS front-end designs for 5G infastructure.
NXP RapidRF Reference Design

NXP RapidRF Reference Design

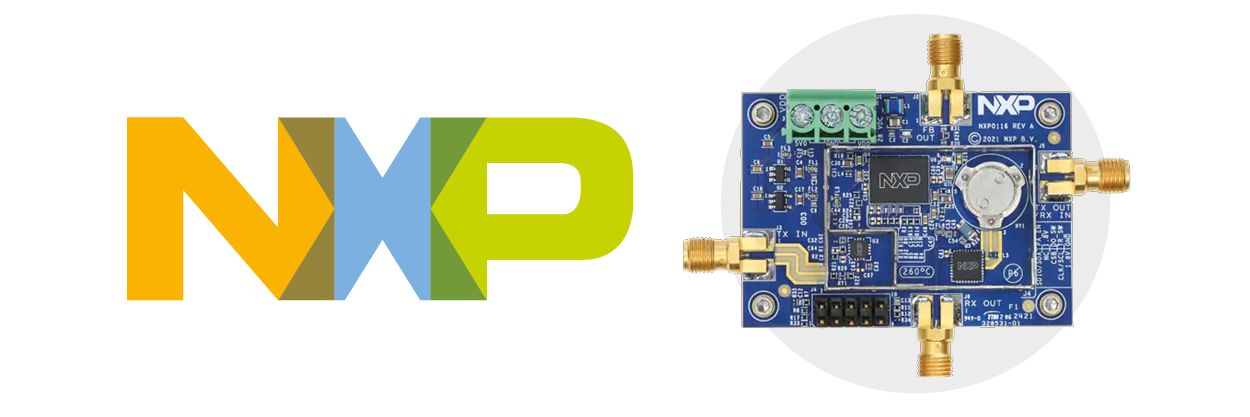

RapidRF Front End Designs are ease-of-use solutions to help accelerate prototyping for massive MIMO systems, Open RAN, outdoor small cells, and low power remote radio heads.

These scalable designs offer NXP’s latest series of pre driver, 50 ohm Multi Chip PA Module and Rx solutions in a small form factor.

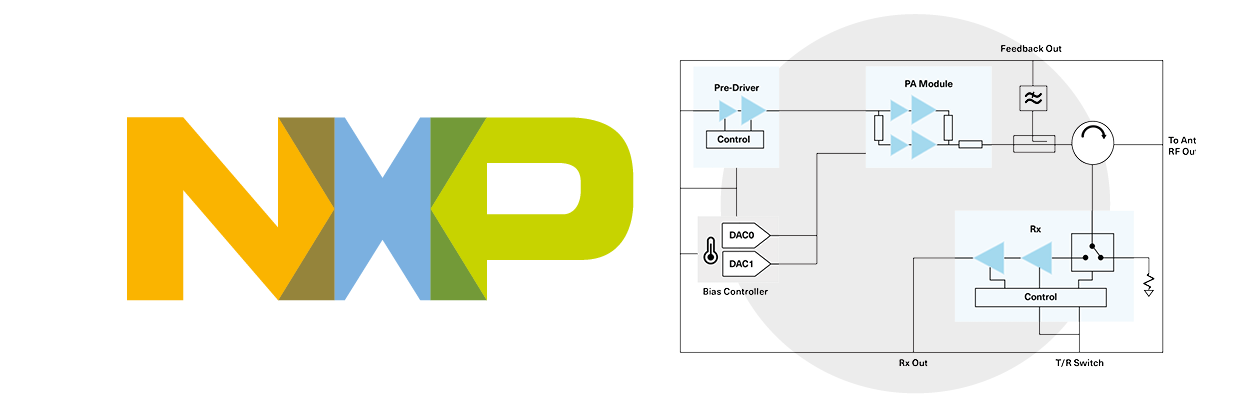

NXP Semiconductors RapidRF front-end designs integrate an RF power amplifier, Rx LNAs, a T/R switch, a circulator and a bias controller in a compact footprint. They incorporate a coupler for DPD feedback and are to be used with digital pre-distortion.

The RapidRF reference boards are ideal for 5G radio units requiring 2.5W to 5.0W (34dBm to 37dBm) average transmit power at the antenna. Versions for different bands use a common PCB layout, simplifying both design and manufacturing for faster time-to-market.

NXP  28 V LDMOS RF Front-End Designs

Part Number
Frequency Range
Average Output Power
Availability
RAPIDRF-36SL039
3400-3600 MHz
39 dBm (8 W) at 8.5 dB OBO, at 29 V
Order / Learn More
RAPIDRF-35TL039
3400-3600 MHz
38.5 dBm (7 W) at 9.0 dB OBO, at 26 V
Order / Learn More
RAPIDRF-26E39
2496-2690 MHz
39 dBm (8 W) at 8 dB OBO, at 27 V
Order / Learn More
RAPIDRF-35D35
3400-3600 MHz
34.8 dBm (3 W) at 8.4 dB OBO, at 24 V
Order / Learn More

NXP RapidRF 5G Resources

#image_title

RapidRF Fact Sheet

RapidRF smart LDMOS front-end designs for 5G infastructure.

RapidRF Fact Sheet

RapidRF reference boards are ideal for 5G radio units requiring 2.5 to 8 Watts (34-39 dBm) average transmit power at the antenna. Versions for multiple bands use a common PCB layout, simplifying both design and manufacturing for faster time-to-market.
View Fact Sheet

Rapid RF Smart LDMOS User Guide

NXP’s RapidRF front-end designs are complete RF front-end solutions for 5G TDD radio systems.

Rapid RF Smart LDMOS User Guide

XP’s RapidRF front-end designs are complete RF front-end solutions for 5G TDD radio systems. They are ideal for transmitters requiring 5 to 10 watts (37–40 dBm) average power with approximately 8.5 dB PAR LTE/NR signals...
View User Guide
