UMS - CHA2595-QDG
New Wideband LNA in QFN Plastic Package

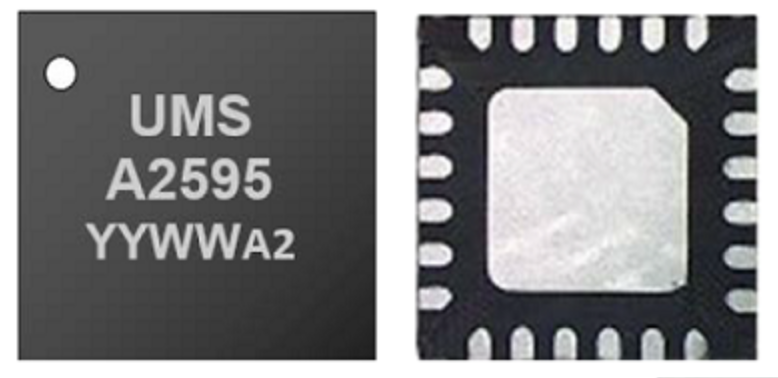

UMS CHA2595-QDG: New Wideband LNA in QFN Plastic Package

The CHA2595-QDG is a wide band monolithic Low Noise Amplifier with State of the art wide band, low noise, adjustable gain performance. It is designed for a wide range of applications, from military to commercial communication and test instrumentation systems.

It is manufactured with a successfully space evaluated pHEMT process, 100nm gate length, via holes through the substrate, air bridges and electron beam gate lithography. It is supplied in RoHS compliant low cost SMD package.

  • Broadband performance: 27.5-43.5 GHz
  • Typical Linear Gain: 19.5 dB
  • Typical Noise Figure: 2.3 dB
  • P1dB: 11 dBm
  • Psat: 12 dBm
  • OIP3: >20 dBm
  • DC bias: Vd=3.3V @ Id=61 mA
  • 24L QFN 4×4
  • MSL1
