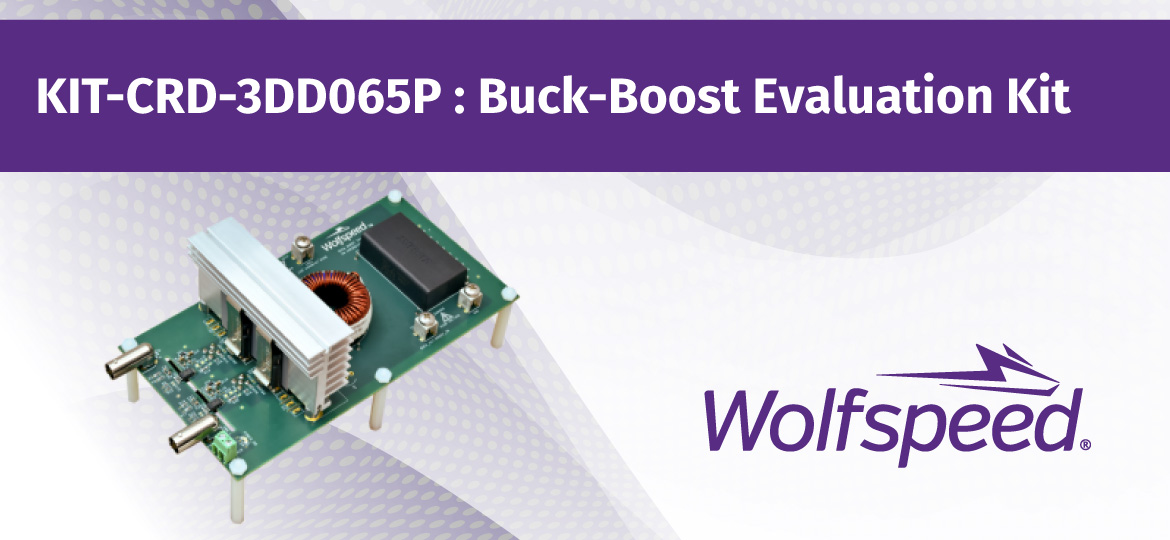

Mfg Part No: KIT-CRD-3DD065P
Evaluate and optimize the steady state and high speed dynamic switching performance of Wolfspeed’s latest (C3M™) 650V SiC MOSFETs and 6th Generation 650 V SiC Schottky diodes.
- Analyze the evaluation board in versatile power conversion topologies, such as Synchronous / Asynchronous Buck or Boost converter, Half Bridge and Full Bridge (Please note: Full Bridge topology requires 2 Evaluation Kits)
- Board features footprints for both 3 and 4 lead TO-247 packages of C3M™ SiC MOSFETs
- Compatible with both TO-247 and TO-220 packages of SiC Schottky diodes
- Does not require an additional capacitor to run the evaluation board in the buck or boost converter topologies
- Two (2) dedicated gate drivers available on the board for each C3M™ SiC MOSFET
- Includes (2) 650 V, 60mΩ C3M™ SiC MOSFETs in a TO-247-4 Package (C3M0060065K) with the testing hardware
