Discover pSemi’s newest UltraCMOS+™ SP4T RF switch, offering low insertion loss, high isolation, exceptional linearity, and fast settling time for efficient RF signal routing.
PE42448 from pSemi
The PE42448 is a HaRP™ technology-enhanced SP4T RF switch that supports a frequency range from 10 MHz to 6 GHz. It delivers extremely low insertion loss and high linearity with high input power handling capability, making this device ideal for hybrid analog beamforming and in 5G massive MIMO (multi-input multi-output) applications. No blocking capacitors are required if DC voltage is not present on the RF ports. The PE42448 is manufactured on pSemi’s UltraCMOS+ process, a patented advanced form of silicon-on-insulator (SOI) technology.
Key Features
- Low insertion loss:
- 0.42 dB at 2.6 GHz typical
- 0.6 dB at 3.8 GHz typical
- High linearity IIP3: 88.5 dBm
- High power handling: 39.5 dBm RMS, 11 dBm PAR
- +115 °C operating temperature
- Packaging: 20-lead 4 x 4 mm LGA

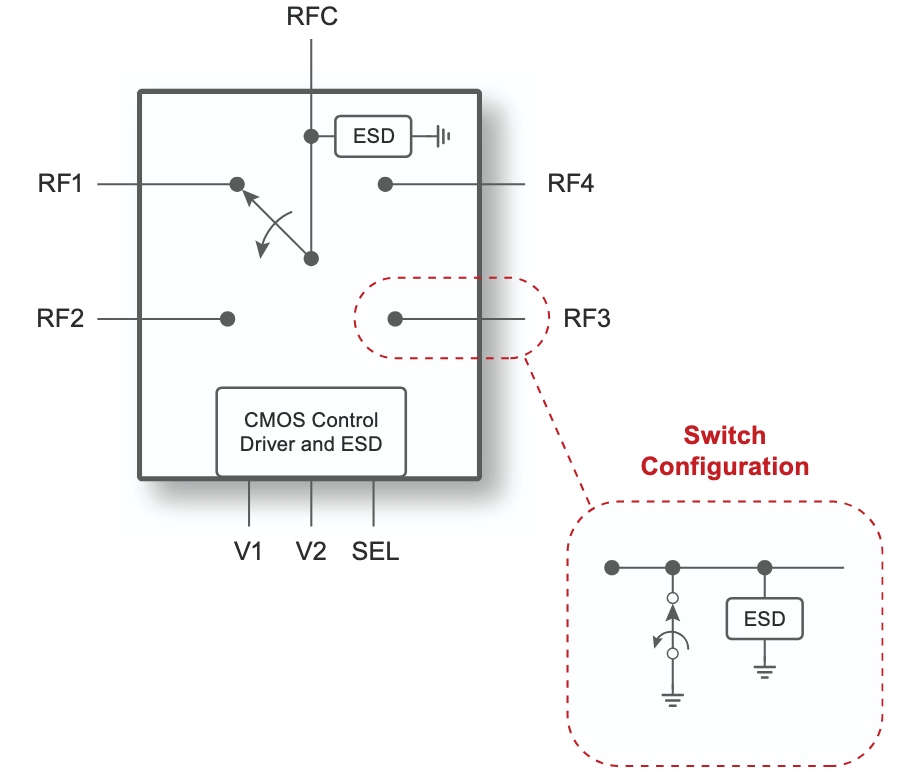

Functional Diagram
Applications
- Analog hybrid beamforming RF front end
- 5G massive MIMO active antenna system (AAS)
- 4G/4.5G TD-LTE macro/micro cell/RRH
Specifications
Description | UltraCMOS+™ SP4T RF Switch |
|---|---|
Min Freq. |
10 MHz |
Max Freq. | 6 GHz |
Max Typ. IL (dB) | 3.0 |
Min Typ. IL (dB) | 0.25 |
Max Typ. Iso (dB) | 45.0 |
Min Typ. Iso (dB) | 16.0 |
P1dB/P0.1dB (dBm) | 50.5 |
IIP3 (dBm) | 88.5 dBm |
Max Power Rating (dBm) | 39.5 |
Max Temp (ºC) | +115 °C |
VDD Range (V) | 4.5–5.5 |
Switching Time | 3.0 µs |
ESD HBM (V) | 1500 |
Package (mm) | 4×4 |
Package | 20L LGA |
