MASW-011152 versatile for variety of wideband applications

The MASW-011152 is an absorptive, ultra wideband single pole double throw (SPDT) switch with 2.2 dB of insertion loss at 50 GHz. The RF output ports are terminated in 50 Ω in the isolated path.

This white paper reviews component selection, design in a simulated environment, and implementation of the simulated circuit into hardware.

RadioCarbon is a standalone RF front end (RFFE) that becomes a development kit when paired with the BytePipe™ SDR system on module.

The game-changing RF front ends are the real heroes of the RadioCarbon kit, with PAs based on MACOM’s innovative GaN on SiC technology.

RadioCarbon becomes a development kit when paired with the BytePipe™ SDR system on module, which includes Analog Devices’ ADRV9002 highly integrated, RF transceiver.

MACOM’s CMPA1C1D080F is a packaged, 90 W HPA utilizing Wolfspeed’s high performance, 0.25um GaN on SiC production process.

MACOM’s CMPA2935150S is a high-power, two-stage MMIC housed in a QFN package, allowing for compact module designs and easy assembly.

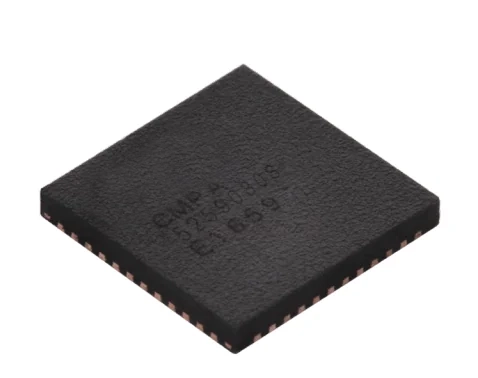

MACOM’s CMPA5259080S is a high-power, two-stage MMIC amplifier housed in a plastic QFN SMT package.
