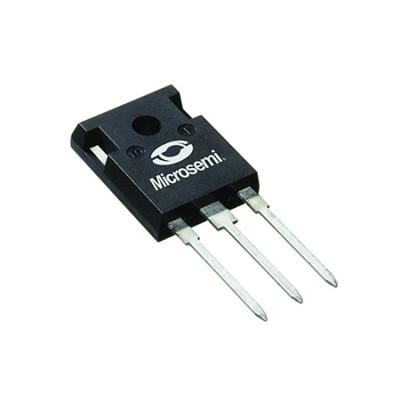

- Mfg Part Number: MSC040SMA120B
Increase your performance over silicon MOSFET and silicon IGBT solutions while lowering your total cost of ownership for high-voltage applications.
- Features
- Low capacitances and low gate charge
- Fast switching speed due to low internal gate resistance (ESR)
- Stable operation at high junction temperature, TJ(max) = +175C
- Fast and reliable body diode
- Superior avalanche ruggedness
- RoHS Compliant
- Benefits
- High efficiency to enable lighter, more compact system
- Simple to drive and easy to parallel
- Improved thermal capabilities and lower switching losses
- Eliminates the need of external freewheeling diode
- Lower system cost of ownership
- Applications
- PV inverter, converter and industrial motor drives
- Smart grid transmission and distribution
- Induction heating and welding
- H/EV powertrain and EV charger
- Power supply and distribution
